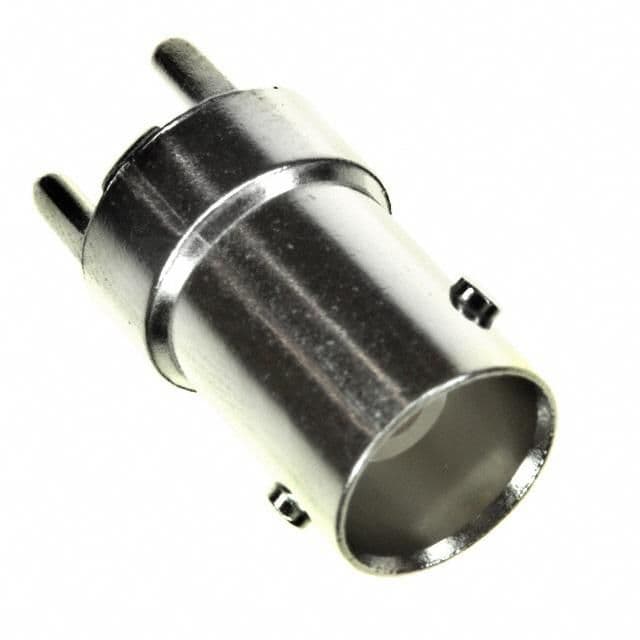

BNC Connector, Straight, PCB Mount, 4GHz, 50 Ohm, Gold Contact

TE Connectivity

5-1634506-1

Name: 5-1634506-1 TE Connectivity
Brand: TE Connectivity
SKU: 5-1634506-1

BNC Connector, Straight, PCB Mount, 4GHz, 50 Ohm, Gold Contact

Straight RF coaxial connector, 50 Ohm impedance, designed for PCB mounting via through-hole termination. Features a zinc body with nickel plating and a bronze center contact with gold plating, operating from DC to 4 GHz. This connector offers 500 mating cycles and a voltage rating of 500V, with a temperature range of -55°C to 85°C. Constructed with Polymethylpentene dielectric and insulation, it is RoHS compliant.

Frequency4GHz

Voltage Rating500V

MountingThrough Hole, PCB

PolarityNormal

Quick Jump:

Technical Specifications

TE Connectivity 5-1634506-1 technical specifications.

General

Body Material	Zinc
Body Plating	Nickel
Center Contact Plating	Gold
Contact Material	Bronze
Contact Plating	Gold
Depth	11mm
Dielectric Material	Polymethylpentene
ELV	Compliant
Frequency	4GHz
Gender	Male
Housing Color	Silver
Impedance	50R
Insulation Material	Polymethylpentene
Length	11mm
Mating Cycles	500
Max Frequency	4GHz
Max Operating Temperature	85°C
Min Operating Temperature	-55°C
Mount	Through Hole, PCB
Number of Ports	1
Number of Positions	1
Operating Frequency	0 to 4 GHz
Orientation	Straight
Package Quantity	100
Packaging	Bulk
PCB Mount Retention	With
PCB Mounting Orientation	Vertical
Plating	Nickel
Polarity	Normal
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Sealable	No (Without)
Series	ZDC, Greenpar
Termination	Solder
Voltage Rating	500V
