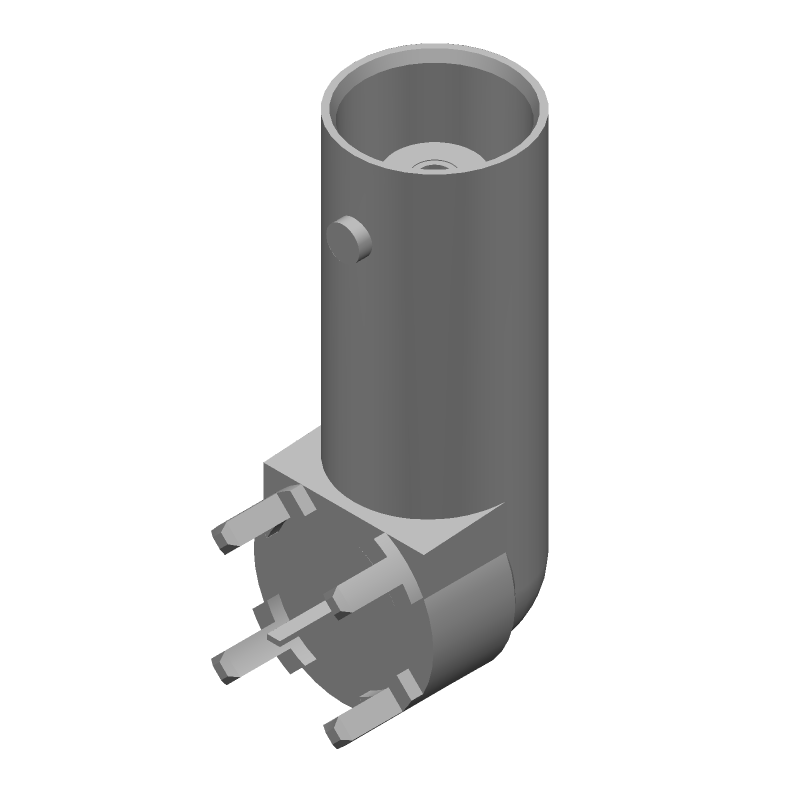

Low profile right-angle BNC socket, 50 Ohm impedance, designed for PCB through-hole mounting. Features a zinc body with nickel plating and a gold-plated bronze center contact for reliable signal integrity. Operates from DC to 2 GHz with a voltage rating of 500V and a mating cycle of 500. Constructed with PTFE dielectric and insulation, this female connector offers a temperature range of -55°C to 85°C.
Frequency2GHz
Voltage Rating500V
MountingPCB, Through Hole, Board
PolarityNormal
Quick Jump:
Technical Specifications
TE Connectivity 5-1634513-1 technical specifications.
General
Body Material
Zinc
Body Plating
Nickel
Center Contact Plating
Gold
Contact Material
Bronze
Contact Plating
Gold
Depth
11mm
Dielectric Material
PTFE
Frequency
2GHz
Gender
Female
Housing Color
Silver
Impedance
50R
Insulation Material
Polytetrafluoroethylene
Length
28.1mm
Mating Cycles
500
Max Frequency
2GHz
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
PCB, Through Hole, Board
Number of Contacts
1
Number of Ports
1
Number of Positions
1
Operating Frequency
0 to 2 GHz
Orientation
Right Angle
Outside Diameter
14.529mm
Package Quantity
100
Packaging
Tray
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
PCB Thickness
0.126inch
Polarity
Normal
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
ZDC, Greenpar
Tail Length
3.5mm
Termination
Solder
Voltage Rating
500V
Working Voltage
500V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5-1634513-1 Datasheet
Download the complete datasheet for TE Connectivity 5-1634513-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
