50-position, 2-row right-angle receptacle connector with 2.54mm pitch. Features IDT termination for ribbon cable mounting, accommodating 26-30AWG wire gauges. Offers a 1A current rating with gold-plated bronze contacts. Housing is grey, and the component is RoHS compliant.
Current Rating1A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 5-215882-0 technical specifications.
General
Color
Grey
Contact Material
Bronze, Gold
Contact Plating
Gold
Contact Type
Female Socket
Current Rating
1A
Depth
14.2mm
ELV
Compliant
Gender
Receptacle
Housing Color
Grey
Length
68.1mm
Mount
Free Hanging, Cable
Number of Contacts
50
Number of Positions
50
Number of Rows
2
Orientation
Right Angle
Package Quantity
420
Packaging
Bulk
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AMP-LATCH
Termination
IDT
Width
60.9mm
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
26AWG
Wire/Cable Type
Ribbon
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5-215882-0 Datasheet
Download the complete datasheet for TE Connectivity 5-215882-0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

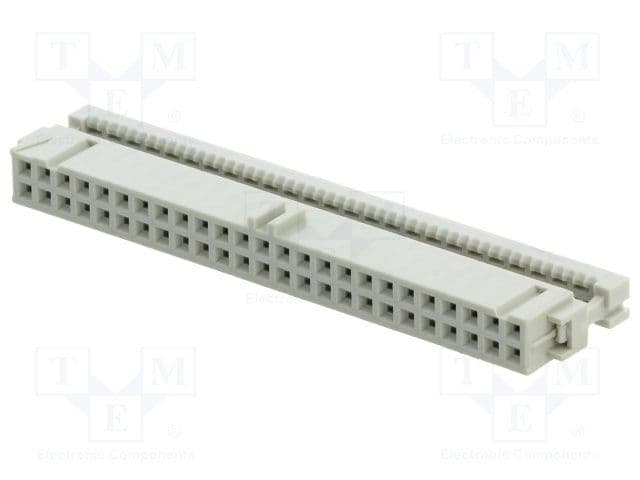

Product Images
