120-position, 2-row receptacle connector with 0.8mm pitch, designed for board-to-board applications. Features straight, surface mount termination with a 15mm stack height and 13mm mated stacking height. Offers a 500mA contact current rating, gold/tin/matte contact plating, and a 100V voltage rating. Constructed with a copper alloy contact material and a natural colored, UL94 V-0 flammability rated housing. Operates within a -40°C to 125°C temperature range.
Voltage Rating100V
Current Rating500mA
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity 5-5179010-5 technical specifications.
General
| Boss | Yes (With) |
| Connector System | Board-to-Board |
| Contact Current Rating | 500mA |
| Contact Material | Copper Alloy |
| Contact Plating | Gold, Tin, Matte |
| Current Rating | 500mA |
| Depth | 6.8mm |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Height | 0.512inch |
| Housing Color | Natural |
| Length | 53.8mm |
| Mated Stacking Heights | 13mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 100V |
| Mount | Surface Mount |
| Number of Contacts | 120 |
| Number of Positions | 120 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 450 |
| Packaging | Rail/Tube |
| PCB Mount Alignment | Yes (With) |
| PCB Mount Retention | Without |
| PCB Mounting Orientation | Vertical |
| Pitch | 0.8mm |
| Preloaded | Yes |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 2.4mm |
| Sealable | No (Without) |
| Series | Free Height (FH) |
| Stack Height | 15mm |
| Stackable | Yes |
| Termination | SMD/SMT |
| Voltage Rating | 100V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 5-5179010-5 Datasheet
Download the complete datasheet for TE Connectivity 5-5179010-5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

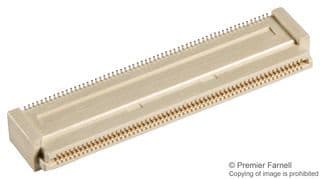

Product Images
