8-position, 2-row straight shrouded receptacle with a 2.54mm pitch. Features gold-plated bronze contacts for 2A current rating, a square contact shape, and a 2.92mm contact post length. Through-hole mounting with vertical PCB orientation, this component offers a 105°C maximum operating temperature and is UL94 V-0 flammability rated. Constructed with a black glass-filled nylon housing, it is RoHS compliant and stackable.
Current Rating2A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 5-534206-4 technical specifications.
General
| Approvals | CSA |
| Boss | No (Without) |
| Contact Current Rating | 2A |
| Contact Finish - Mating | GOLD |
| Contact Material | Bronze |
| Contact Plating | Gold, Tin |
| Contact Post Length | 2.92mm |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Current Rating | 2A |
| Depth | 5.03mm |
| ELV | Non-Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Height | 5.03mm |
| High Temperature Compatible | No |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | Glass |
| Lead Free | Lead Free |
| Length | 10.16mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -65°C |
| Mount | Through Hole |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 56 |
| Packaging | Rail/Tube |
| PCB Mount Retention | Without |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 1.57mm |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Sealable | No (Without) |
| Series | AMPMODU MOD II |
| Stackable | Yes |
| Tail Length | 2.92mm |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 5-534206-4 Datasheet
Download the complete datasheet for TE Connectivity 5-534206-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

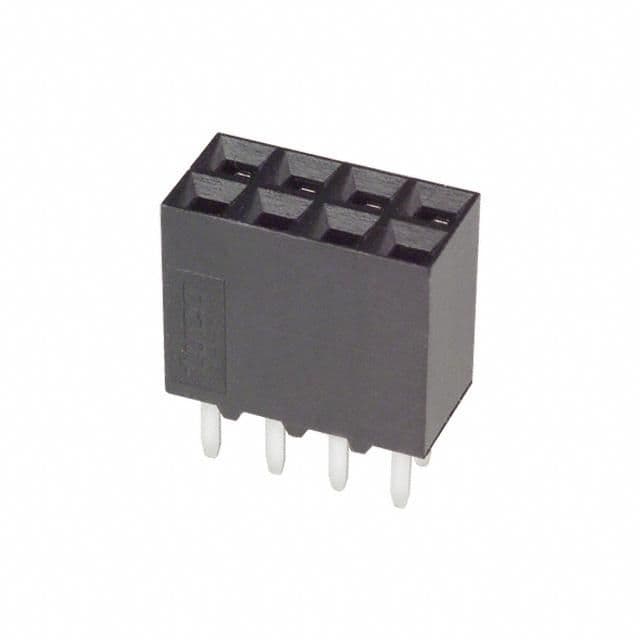

Product Images
