50-position, single-row male pin header with a 2.54mm pitch. Features gold-plated bronze/brass contacts with a 6.7mm mating length and 3.2mm post length, rated for 3A and 475V. Straight, through-hole termination with a green PBT insulation material and UL94 V-0 flammability rating. Operating temperature range of -65°C to 105°C, with RoHS compliance.
Voltage475V
Current3A
Current Rating3A
MountingStraddle Mount
Quick Jump:
Technical Specifications
TE Connectivity 5-826629-0 technical specifications.
General
Board Standoff
No (Without)
Color
Green
Contact Finish - Mating
GOLD
Contact Gender
Male
Contact Material
Bronze, Brass
Contact Mating Length
6.7mm
Contact Plating
Gold, Tin
Contact Post Length
3.2mm
Contact Protection
No (Without)
Contact Shape
Square
Contact Type
Male Pin
Current
3A
Current Rating
3A
Depth
2.5mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gasket
No (Without)
Gender
Male
High Speed Serial Data Connector
No
High Temperature Housing
No
Housing Color
Green
Insulation Color
Green
Insulation Material
PBT
Keyed
No
Length
127mm
Mating Alignment
No (Without)
Mating Connector Lock
No (Without)
Max Operating Temperature
105°C
Min Operating Temperature
-65°C
Mount
Straddle Mount
Mounting Ears
No (Without)
Number of Contacts
50
Number of Positions
50
Number of Rows
1
Orientation
Straight
Package Quantity
300
Packaging
Carton
Panel Mount Retention
No (Without)
PCB Mount Retention
Without
Pitch
2.54mm
Plating Thickness
0.8um
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
0.1inch
Selectively Loaded
No (Without)
Series
AMPMODU MOD II
Stabilizers
No (Without)
Strain Relief
No (Without)
Termination
Through Hole
Voltage
475V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5-826629-0 Datasheet
Download the complete datasheet for TE Connectivity 5-826629-0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

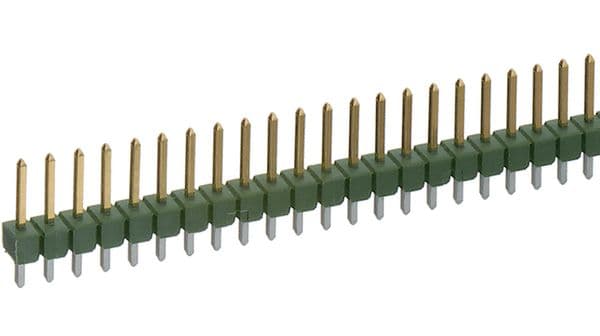

Product Images
