High-voltage RF coaxial connector featuring a straight, female gender and single position. Designed for safe high-voltage applications, it boasts a 5kV voltage rating and operates within a -65°C to 200°C temperature range. The connector offers 500 mating cycles and utilizes a PTFE dielectric for reliable performance. Body plating is nickel, with gold plating on the center contact and contact material for enhanced conductivity. Mounting options include free hanging, panel, and cable, with a crimp termination.
Frequency300MHz
Voltage Rating5kV
MountingFree Hanging, Panel, Cable
PolarityStandard, Normal
Quick Jump:
Technical Specifications
TE Connectivity 5051426-4 technical specifications.
General
Body Plating
Nickel
Center Contact Plating
Gold
Contact Material
Gold
Contact Plating
Gold
Dielectric Material
PTFE
ELV
Compliant
Frequency
300MHz
Gender
Female
Housing Color
Silver
Insulation Material
Polytetrafluoroethylene
Lead Free
Lead Free
Mating Cycles
500
Max Operating Temperature
200°C
Min Operating Temperature
-65°C
Mount
Free Hanging, Panel, Cable
Number of Contacts
1
Number of Ports
1
Number of Positions
1
Operating Frequency
N/A
Orientation
Straight
Outside Diameter
14.43mm
Package Quantity
1
Packaging
Bulk
PCB Mounting Orientation
Straight
Polarity
Standard, Normal
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
Yes (With)
Series
Coaxicon
Termination
Crimp
Voltage Rating
5kV
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5051426-4 Datasheet
Download the complete datasheet for TE Connectivity 5051426-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

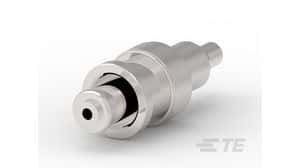

Product Images
