5102153-8

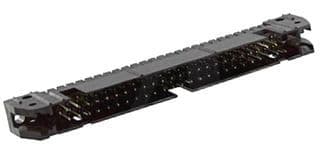

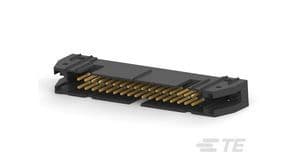

34 Pos 2 Row 2.54mm Pitch Shrouded Header, Vertical, 1A, 250V

34-position, 2-row vertical header with a 2.54mm pitch for wire-to-board applications. Features gold or gold-palladium plated bronze male pins with a 2.79mm contact post length, rated for 1A and 250V AC. This shrouded header offers mating alignment and retention, with a black UL94 V-0 rated housing and a maximum operating temperature of 105°C. Mounts via through-hole termination.

Voltage Rating250V

Current Rating1A

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 5102153-8 technical specifications.

General

Approvals	UL, CSA
Board Standoff	No (Without)
Color	Black
Connector System	Wire-to-Board
Contact Current Rating	1A
Contact Finish - Mating	Gold or Gold-Palladium
Contact Gender	Male
Contact Material	Bronze
Contact Plating	Gold, Tin
Contact Post Length	2.79mm
Contact Shape	Square
Contact Type	Male Pin
Current Rating	1A
Depth	8.53mm
Flammability Rating	UL94 V-0
Height	0.55inch
Housing Color	Black
Insulation Color	Black
Length	2.46inch
Mating Alignment	Yes (With)
Mating Connector Lock	No (Without)
Mating Retention	Yes (With)
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Max Voltage Rating (AC)	250V
Mount	Through Hole
Number of Contacts	34
Number of Positions	34
Number of Rows	2
Orientation	Straight
Package Quantity	50
Packaging	Tray
PCB Mount Alignment	No (Without)
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
PCB Thickness	1.57mm
Pitch	2.54mm
Radiation Hardening	No
RoHS Compliant	No
Row Spacing	2.54mm
Series	AMP-LATCH
Shrouded	Yes (With)
Shrouded End Dimension	3.81mm
Termination	Through Hole
Voltage Rating	250V
