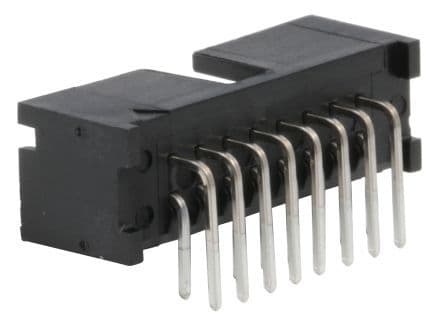

16P RA Header, 2.54mm Pitch, 1A, Gold Contact, Through Hole

TE Connectivity

5103310-3

Name: 5103310-3 TE Connectivity
Brand: TE Connectivity
SKU: 5103310-3

16P RA Header, 2.54mm Pitch, 1A, Gold Contact, Through Hole

16-position, 2-row right-angle header for signal applications, featuring a 2.54mm pitch and through-hole termination. This shrouded male connector offers a 1A contact current rating with gold or gold-palladium mating contact finish and copper alloy contact material. Constructed with a black housing and insulation, it operates within a temperature range of -65°C to 105°C and has a maximum voltage rating of 250V AC. The component includes board standoff and mating alignment features, with a UL94 V-0 flammability rating.

Current Rating1A

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 5103310-3 technical specifications.

General

Board Standoff	Yes (With)
Circuit Application	Signal
Connector System	Wire-to-Board
Contact Current Rating	1A
Contact Finish - Mating	Gold or Gold-Palladium
Contact Gender	Male
Contact Material	Copper Alloy
Contact Plating	Gold, Tin
Contact Post Length	0.135inch
Contact Shape	Square
Contact Type	Male Pin
Current Rating	1A
Depth	12.31mm
Flammability Rating	UL94 V-0
Gender	Male
Height	8.813mm
Housing Color	Black
Insulation Color	Black
Length	27.94mm
Mating Alignment	Yes (With)
Mating Connector Lock	No (Without)
Mating Retention	No (Without)
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Max Voltage Rating (AC)	250V
Mount	Through Hole
Number of Contacts	16
Number of Positions	16
Number of Rows	2
Operating Supply Voltage	250V
Orientation	Right Angle
Package Quantity	35
Packaging	Rail/Tube
PCB Mount Alignment	No (Without)
Pitch	2.54mm
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Row Spacing	2.54mm
Series	AMP-LATCH
Shrouded	Yes (With)
Shrouded End Dimension	3.81mm
Termination	Through Hole
