Right-angle, 20-position, 2-row male pin header for wire-to-board applications. Features a 2.54mm pitch and 1A contact current rating with gold or gold-palladium mating contact finish. Constructed from copper alloy with gold and tin plating, offering a 0.135-inch contact post length and square contact shape. Housing and insulation are black, with a UL94 V-0 flammability rating and a maximum operating temperature of 105°C. Through-hole termination and shrouded design with board standoff.
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 5103310-5 technical specifications.
General
Board Standoff
Yes (With)
Connector System
Wire-to-Board
Contact Current Rating
1A
Contact Finish - Mating
Gold or Gold-Palladium
Contact Gender
Male
Contact Material
Copper Alloy
Contact Plating
Gold, Tin
Contact Post Length
0.135inch
Contact Shape
Square
Contact Type
Male Pin
Current Rating
1A
Depth
12.31mm
Flammability Rating
UL94 V-0
Height
8.813mm
Housing Color
Black
Insulation Color
Black
Lead Pitch
2.54mm
Length
33.02mm
Mating Alignment
Yes (With)
Mating Connector Lock
No (Without)
Mating Retention
No (Without)
Max Operating Temperature
105°C
Min Operating Temperature
-65°C
Mount
Through Hole
Number of Contacts
20
Number of Positions
20
Number of Rows
2
Orientation
Right Angle
Package Quantity
35
Packaging
Rail/Tube
PCB Mount Alignment
No (Without)
PCB Mount Retention
Without
PCB Mounting Orientation
Right Angle
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
No
Row Spacing
2.54mm
Series
AMP-LATCH
Shrouded
Yes (With)
Shrouded End Dimension
3.81mm
Termination
Through Hole
Compliance
RoHS
Not CompliantNo
Datasheet
TE Connectivity 5103310-5 Datasheet
Download the complete datasheet for TE Connectivity 5103310-5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

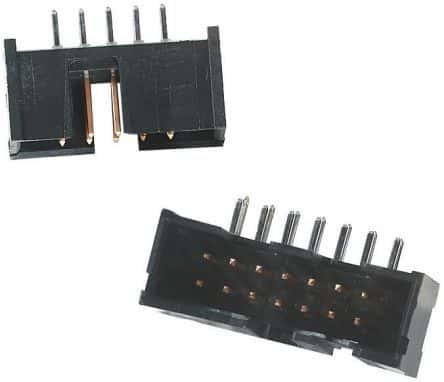

Product Images
