5148295-5

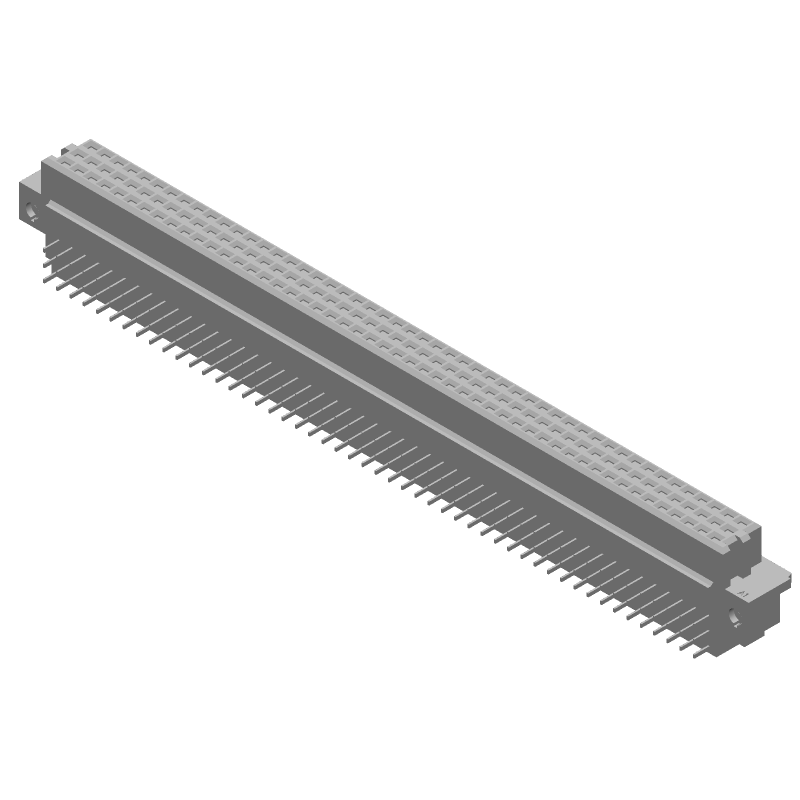

150 Pos 3 Row 2.54mm Pitch Receptacle, Right Angle, TH

Female Eurocard receptacle, right-angle, through-hole mount with 150 positions and 150 contacts. Features copper alloy contacts with tin plating, a 2.54mm pitch, and a 2.92mm tail length. Operates within a -55°C to 125°C temperature range and has a 250V AC max voltage rating. Housing is grey polymer, UL94 V-0 flammability rated, and the component is RoHS and ELV compliant.

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 5148295-5 technical specifications.

General

Color	Grey
Contact Material	Copper Alloy
Contact Plating	Tin
Contact Post Length	2.92mm
Depth	18.54mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Female
Height	10.49mm
Housing Color	Grey
Insulation Material	Polymer
Length	139.6mm
Make First / Break Last	No
Mating Alignment	No (Without)
Mating Retention	Yes (With)
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
Max Voltage Rating (AC)	250V
Mount	Through Hole
Number of Contacts	150
Number of Positions	150
Number of Rows	3
Orientation	Right Angle
Package Quantity	28
Packaging	Box
PCB Mount Alignment	No (Without)
PCB Mount Retention	With
PCB Mounting Orientation	Right Angle
PCB Thickness	0.062inch
Pitch	2.54mm
RoHS Compliant	Yes
Series	Eurocard
Tail Length	2.92mm
Termination	Solder
