Blue, insulated female terminal for 6AWG wire, featuring a copper contact with tin plating. This free-hanging, straight-oriented component offers insulated wire support and a 600V AC voltage rating. Constructed with a PVC insulation material and a 0.36-inch insulation diameter, it is RoHS compliant.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 52042-2 technical specifications.
General
Color
Blue
Contact Material
Copper
Contact Plating
Tin
ELV
Compliant
Gender
Female
Government Qualified
No
Heavy Duty
No
Insulated Wire Support
Yes
Insulation
Insulated
Insulation Color
Blue
Insulation Diameter
0.36inch
Insulation Material
PVC
Lead Free
Not Applicable
Length
1.869inch
Material
Copper
Mount
Free Hanging
Number of Holes
1
Orientation
Straight
Package Quantity
100
Packaging
Loose Piece
Plating
Tin
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
Plasti-Grip
Shrouded
No (Without)
Stud Diameter
4.34mm
Stud Size
M4
Termination
Crimp
Thickness
1.14mm
Tongue Thickness
1.14mm
Voltage Rating (AC)
600V
Width
12.7mm
Wire/Cable Gauge
6AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 52042-2 Datasheet
Download the complete datasheet for TE Connectivity 52042-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

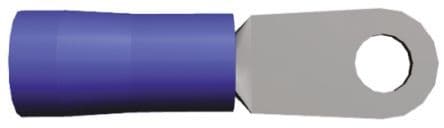

Product Images
