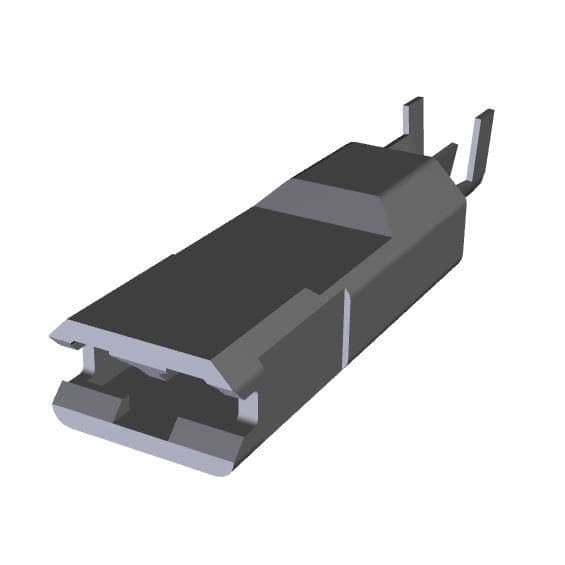

Female quick disconnect terminal, designed for 16-20 AWG discrete wire, featuring a brass body with tin plating. This insulated receptacle offers a 4.75mm mating tab width and 0.032-inch tab thickness, with a 0.13-inch insulation diameter. Operating within a -40°C to 105°C temperature range, it boasts a UL94 V-0 flammability rating and is RoHS compliant. Supplied on tape and reel for efficient processing, this component measures 27.56mm in length.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 521284-2 technical specifications.
General
Color
Natural
Contact Plating
Tin
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Female
Insulated Wire Support
Yes
Insulation
Insulated
Insulation Diameter
0.13inch
Lead Free
Not Applicable
Length
27.56mm
Material
Brass
Mating Tab Width
4.75mm
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Free Hanging
Package Quantity
2500
Packaging
Tape and Reel
Plating
Tin
Radiation Hardening
No
RoHS Compliant
Yes
Series
Ultrapod
Tab Thickness
0.032inch
Tab Width
0.187inch
Termination
Receptacle
Wire Gauge (Max)
20AWG
Wire Gauge (Min)
16AWG
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 521284-2 Datasheet
Download the complete datasheet for TE Connectivity 521284-2 to view detailed technical specifications.
