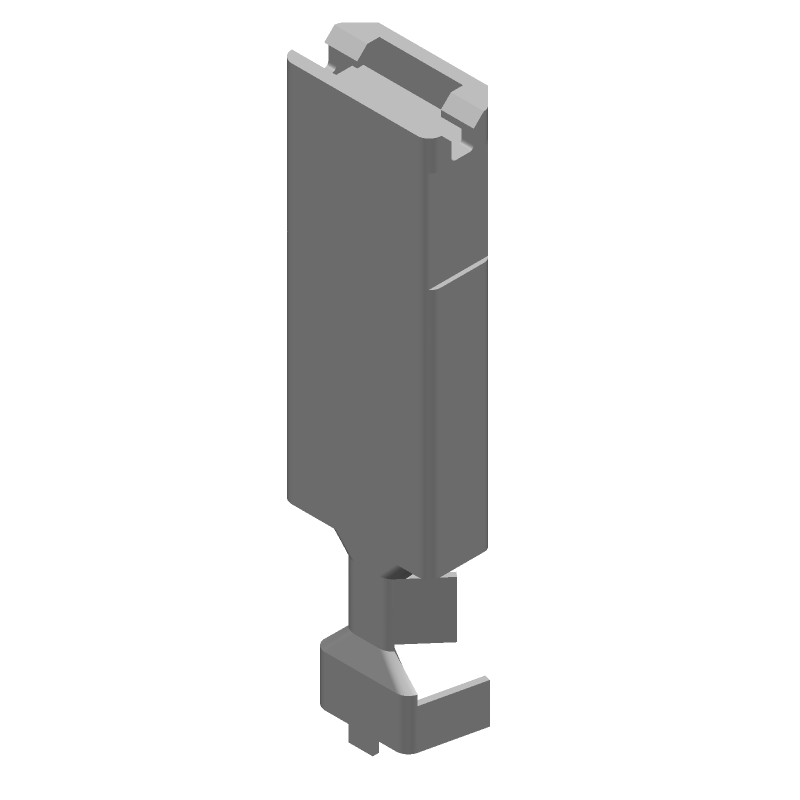

Female quick disconnect terminal for 14-18 AWG discrete wire. Features tin-plated brass construction with insulated wire support and a natural color. Operates within a temperature range of -40°C to 105°C, with a flammability rating of UL94 V-2. This free-hanging receptacle is supplied on tape and reel packaging.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 521637-2 technical specifications.
General
| Color | Natural |
| Contact Plating | Tin |
| ELV | Compliant |
| Flammability Rating | UL94 V-2 |
| Gender | Female |
| Insulated Wire Support | Yes |
| Insulation | Insulated |
| Insulation Diameter | 0.17inch |
| Length | 1.37inch |
| Material | Brass |
| Mating Tab Width | 6.35mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Plating | Tin |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Ultrapod |
| Tab Thickness | 0.032inch |
| Tab Width | 0.25inch |
| Termination | Receptacle |
| Wire Gauge (Max) | 20AWG |
| Wire Gauge (Min) | 14AWG |
| Wire/Cable Type | Discrete |
Compliance
| RoHS | Compliant |
