RF coaxial connector, N Type, male, straight orientation, free hanging/cable mount. Features 50 Ohm impedance, 11GHz max frequency, and 1kV voltage rating. Constructed with a brass body plated in silver, and gold-plated center contacts. Dielectric material is PTFE, with a maximum operating temperature of 165°C.
Frequency11GHz
Voltage Rating1kV
MountingFree Hanging, Cable
PolarityStandard
Quick Jump:
Technical Specifications
TE Connectivity 5225392-2 technical specifications.
General
| Body Material | Brass |
| Body Plating | Silver |
| Center Contact Plating | Gold |
| Contact Plating | Gold |
| Dielectric Material | PTFE |
| ELV | Compliant |
| Gender | Male |
| Housing Color | Silver |
| Impedance | 50R |
| Insulation Material | Polytetrafluoroethylene |
| Lead Free | Not Applicable |
| Length | 42.85mm |
| Mating Cycles | 500 |
| Max Frequency | 11GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Free Hanging, Cable |
| Number of Ports | 1 |
| Operating Frequency | N/A |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Carton |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Termination | Crimp |
| Voltage Rating | 1kV |
| DC Rated Voltage | 1kV |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 5225392-2 Datasheet
Download the complete datasheet for TE Connectivity 5225392-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

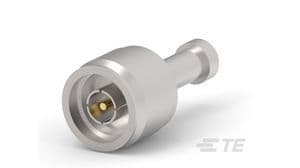

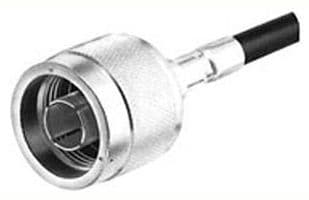

Product Images
