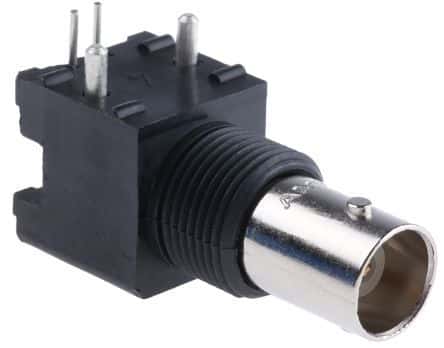

Right-angle, female RF connector designed for PCB mounting. Features a 50 Ohm impedance and operates up to 4 GHz. Constructed with a zinc body plated in nickel, and bronze contacts plated in gold. Offers a voltage rating of 500V and a mating cycle of 500. Includes mounting pins for panel retention.
Frequency4GHz
Voltage Rating500V
MountingPanel
PolarityStandard, Normal
Quick Jump:
Technical Specifications
TE Connectivity 5227161-6 technical specifications.
General
Body Material
Zinc
Body Plating
Nickel
Center Contact Plating
Gold
Contact Material
Bronze
Contact Plating
Gold
Depth
34.93mm
Dielectric Material
Polymethylpentene
Frequency
4GHz
Gender
Female
Housing Color
Black
Impedance
50R
Insulation Material
Polymethylpentene
Length
14.76mm
Mating Cycles
500
Max Frequency
4GHz
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
Panel
Number of Ports
1
Number of Positions
1
Operating Frequency
0 to 4 GHz
Orientation
Right Angle
Package Quantity
35
Packaging
Rail/Tube
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
Polarity
Standard, Normal
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Termination
Through Hole
Voltage Rating
500V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5227161-6 Datasheet
Download the complete datasheet for TE Connectivity 5227161-6 to view detailed technical specifications.
