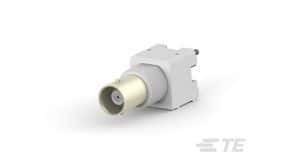

Vertical PCB mount BNC connector with 50 Ohm impedance and 4GHz maximum operating frequency. Features gold-plated bronze center contacts and nickel-plated PBT/polyester body. Designed for 500 mating cycles with a temperature range of -55°C to 85°C. Termination is through-hole, suitable for standard polarity applications.
Frequency4GHz
Voltage Rating500V
MountingPanel
PolarityStandard, Normal
Quick Jump:
Technical Specifications
TE Connectivity 5227222-3 technical specifications.
General
Body Material
PBT, Polyester
Body Plating
Nickel
Center Contact Plating
Gold
Contact Material
Bronze
Contact Plating
Gold
Depth
15.88mm
Dielectric Material
Polymethylpentene
ELV
Compliant
Frequency
4GHz
Gender
Female
Housing Color
White
Impedance
50R
Insulation Material
Polymethylpentene
Lead Free
Lead Free
Length
14.76mm
Mating Cycles
500
Max Frequency
4GHz
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
Panel
Number of Ports
1
Number of Positions
1
Operating Frequency
0 to 4 GHz
Orientation
Straight
Package Quantity
35
Packaging
Rail/Tube
PCB Mount Retention
With
PCB Mounting Orientation
Vertical
Polarity
Standard, Normal
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Termination
Through Hole
Voltage Rating
500V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5227222-3 Datasheet
Download the complete datasheet for TE Connectivity 5227222-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
