Vertical mount BNC connector for PCB applications, featuring a 50 Ohm impedance and operating frequency up to 4 GHz. This straight, male RF connector utilizes a zinc body with nickel plating and a gold-plated bronze center contact for reliable signal transmission. Designed for through-hole termination, it supports 500 mating cycles and a voltage rating of 500V, with a temperature range of -55°C to 85°C.
Frequency4GHz
Voltage Rating500V
MountingPanel
PolarityStandard, Normal
Quick Jump:
Technical Specifications
TE Connectivity 5227673-1 technical specifications.
General
Body Material
Zinc
Body Plating
Nickel
Center Contact Plating
Gold
Contact Material
Bronze
Contact Plating
Gold
Depth
15.88mm
Dielectric Material
Polymethylpentene
ELV
Compliant
Frequency
4GHz
Gender
Male
Housing Color
Silver
Impedance
50R
Insulation Material
Polymethylpentene
Lead Free
Lead Free
Length
14.76mm
Mating Cycles
500
Max Frequency
4GHz
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
Panel
Number of Ports
1
Number of Positions
1
Operating Frequency
0 to 4 GHz
Orientation
Straight
Package Quantity
35
Packaging
Tray
PCB Mount Retention
With
PCB Mounting Orientation
Vertical
Polarity
Standard, Normal
Radiation Hardening
No
RoHS Compliant
Yes
Sealable
No (Without)
Termination
Through Hole
Voltage Rating
500V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5227673-1 Datasheet
Download the complete datasheet for TE Connectivity 5227673-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

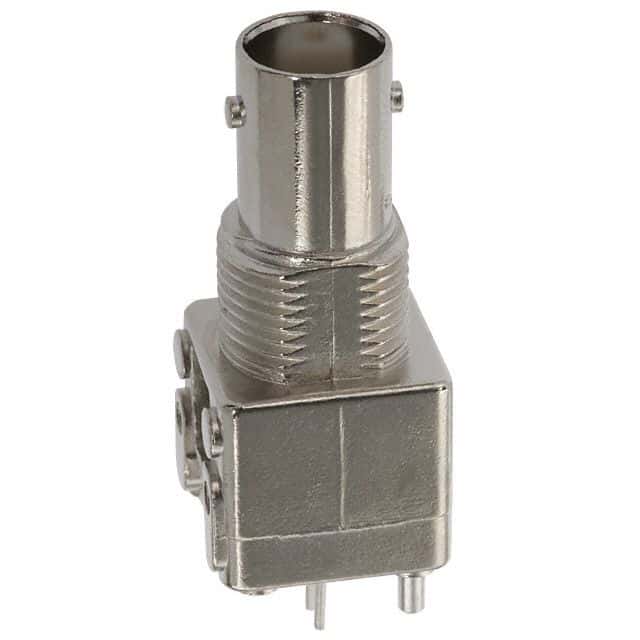

Product Images
