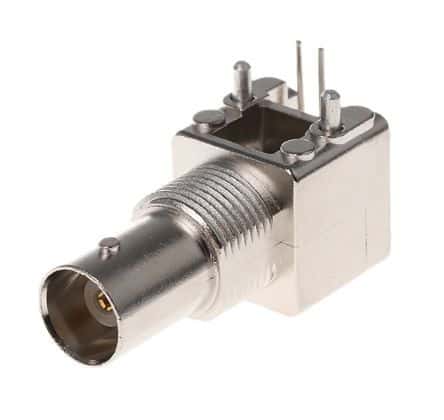

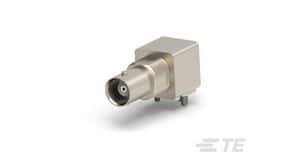

Right-angle BNC female RF connector for PCB mounting. Features a zinc body with nickel plating and gold-plated bronze center contacts. Operates at frequencies up to 4GHz with a 50-ohm impedance. Designed for through-hole termination, this connector has a voltage rating of 500V and a mating cycle of 500.
Frequency4GHz
Voltage Rating500V
MountingPanel
PolarityStandard, Normal
Quick Jump:
Technical Specifications
TE Connectivity 5227677-1 technical specifications.
General
Body Material
Zinc
Body Plating
Nickel
Center Contact Plating
Gold
Contact Material
Bronze
Contact Plating
Gold
Depth
14.76mm
Dielectric Material
Polymethylpentene
Frequency
4GHz
Gender
Female
Housing Color
Silver
Impedance
50R
Insulation Material
Polymethylpentene
Lead Free
Lead Free
Length
35.57mm
Mating Cycles
500
Max Frequency
4GHz
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
Panel
Number of Contacts
1
Number of Ports
1
Number of Positions
1
Operating Frequency
0 to 4 GHz
Orientation
Right Angle
Outside Diameter
14.529mm
Package Quantity
35
Packaging
Rail/Tube
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
Polarity
Standard, Normal
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Tail Length
4.1mm
Termination
Through Hole
Voltage Rating
500V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5227677-1 Datasheet
Download the complete datasheet for TE Connectivity 5227677-1 to view detailed technical specifications.
