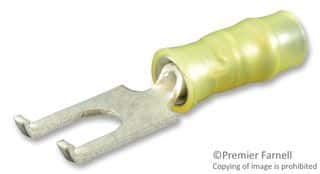

PIDG Flanged Spade Tongue Terminal, designed for 22-26 AWG wire, features a copper body with tin plating for enhanced conductivity and corrosion resistance. This insulated terminal, with a yellow nylon insulation, offers a straight orientation and a stud diameter of 2.84mm (M2.5). It boasts a 300V AC voltage rating and a crimp termination method, ensuring secure wire connections. The terminal is RoHS compliant and lead-free, packaged in loose pieces for convenient application.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 52369 technical specifications.
General
Body Material
Copper
Body Plating
Tin
Color
Yellow
Contact Material
Copper
Contact Plating
Tin
Depth
4.97mm
ELV
Compliant
Government Qualified
No
Heavy Duty
No
Insulated Wire Support
Yes
Insulation
Insulated
Insulation Color
Yellow
Insulation Diameter
2.08mm
Insulation Material
Nylon
Lead Free
Lead Free
Length
0.649inch
Material
Copper
Mount
Free Hanging
Orientation
Straight
Package Quantity
1000
Packaging
Loose Piece
Plating
Tin
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
PIDG
Stud Diameter
2.84mm
Stud Size
M2.5
Terminal Material
Copper
Termination
Crimp
Thickness
0.5mm
Tongue Thickness
0.5mm
Voltage Rating (AC)
300V
Width
4.98mm
Wire Gauge (Max)
22AWG
Wire Gauge (Min)
26AWG
Wire/Cable Gauge
26AWG
Compliance
RoHS
Compliant
