Female, insulated, straight-orientation terminal with a 300V voltage rating. Features a red nylon insulation with a 0.125-inch insulation diameter and a 3.2512mm inside diameter. Constructed from bronze and copper with tin plating, this terminal supports wire gauges from 16AWG to 22AWG and has a 6.35mm width. Designed for crimp termination, it is RoHS compliant and packaged in loose pieces.
Package125
Voltage Rating300V
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 52409 technical specifications.
General
Package/Case
125
Color
Red
Contact Material
Bronze, Copper
Contact Plating
Tin
Finish
Tin
Gender
Female
Government Qualified
No
Heavy Duty
No
Inside Diameter
3.2512mm
Insulated Wire Support
Yes
Insulation
Insulated
Insulation Color
Red
Insulation Diameter
0.125inch
Insulation Material
Nylon
Lead Free
Lead Free
Length
0.933inch
Material
Bronze
Mount
Free Hanging
Orientation
Straight
Package Quantity
1000
Packaging
Loose Piece
Plating
Tin
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
PIDG
Stud Diameter
0.138inch
Stud Size
M3.5
Terminal Material
Bronze
Termination
Crimp
Tongue Thickness
0.79mm
Voltage Rating
300V
Width
6.35mm
Wire Gauge (Max)
22AWG
Wire Gauge (Min)
16AWG
Wire/Cable Diameter
0.125inch
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 52409 Datasheet
Download the complete datasheet for TE Connectivity 52409 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

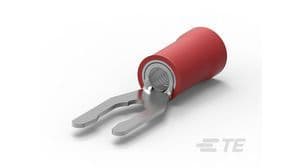

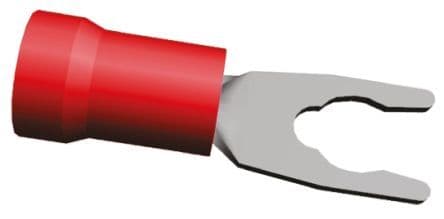

Product Images
