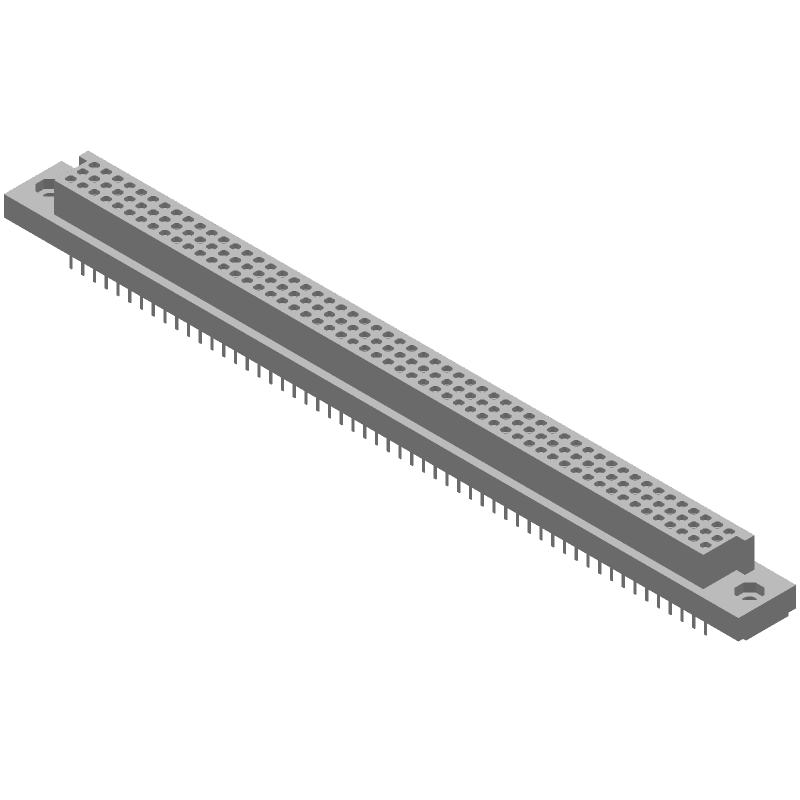

165-position, 3-row box header receptacle with 2.54mm pitch and 0.1 inch row spacing. Features straight, through-hole mounting with a 5.96mm tail length. Copper contacts with gold plating ensure reliable mating, operating within a -65°C to 125°C temperature range. Brown polyphenylene insulation and housing, with a 11.43mm height. RoHS and ELV compliant.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 532786-5 technical specifications.
General
| Boss | No (Without) |
| Color | Brown |
| Contact Finish - Mating | GOLD |
| Contact Material | Copper |
| Contact Plating | Gold |
| Contact Post Length | 0.235inch |
| Contact Protection | No (Without) |
| Contact Shape | Square |
| Contact Type | Female Socket |
| ELV | Compliant |
| Gasket | No (Without) |
| Height | 11.43mm |
| Housing Color | Brown |
| Insulation Color | Brown |
| Insulation Material | Polyphenylene |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -65°C |
| Mount | Through Hole |
| Number of Positions | 165 |
| Number of Rows | 3 |
| Orientation | Straight |
| Package Quantity | 1 |
| PCB Mount Retention | Without |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 2.44mm |
| Pitch | 2.54mm |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Sealable | No (Without) |
| Series | BOX |
| Stabilizers | No (Without) |
| Stackable | No |
| Strain Relief | No (Without) |
| Tail Length | 5.96mm |
| Termination | Through Hole |
