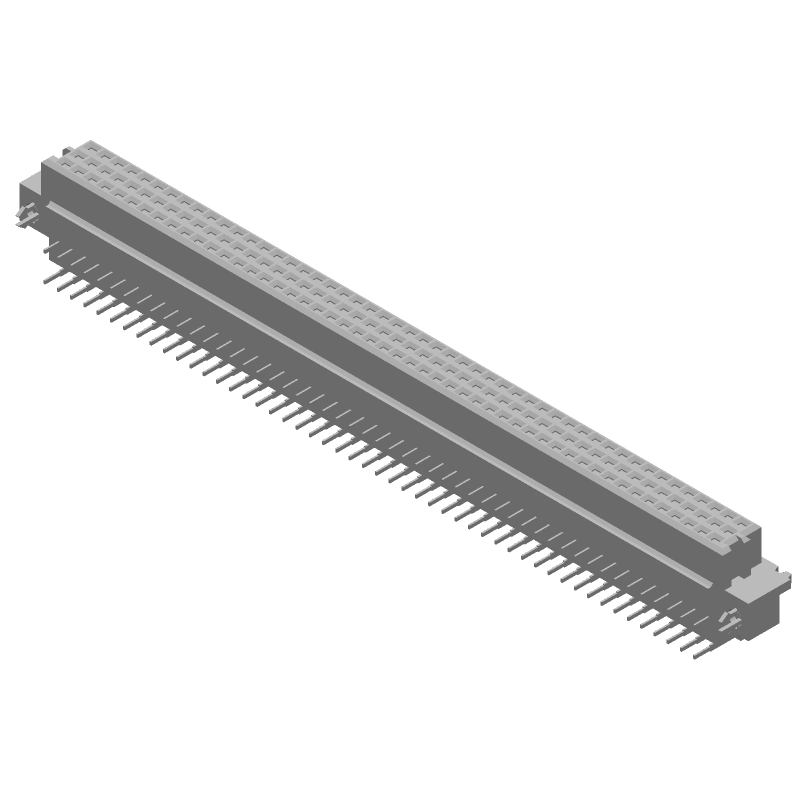

150-position, 3-row, 50-column backplane connector with 2.54mm pitch and right-angle, through-hole mounting. Features bronze contacts with gold and tin/lead plating, 2.79mm contact post length, and a grey glass-filled housing. Designed for solder termination, this Eurocard series connector offers mating alignment and retention, with PCB mounting retention. Compliant with ELV and UL94 V-0 flammability rating.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 536016-5 technical specifications.
General
Color
Grey
Contact Material
Bronze
Contact Plating
Gold, Tin, Lead
Contact Post Length
2.79mm
ELV
Compliant
Flammability Rating
UL94 V-0
Height
17.58mm
Housing Color
Grey
Insulation Material
Glass
Length
139.6mm
Make First / Break Last
No
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Mount
Through Hole
Number of Columns
50
Number of Contacts
100
Number of Positions
150
Number of Positions Loaded
100
Number of Rows
3
Orientation
Right Angle
Packaging
Box
PCB Mount Alignment
No (Without)
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
PCB Thickness
0.062inch
Pitch
2.54mm
Plating Thickness
0.76um
RoHS Compliant
No
Row Spacing
2.54mm
Series
Eurocard
Shielding
Unshielded
Tail Length
2.79mm
Termination
Solder
Compliance
RoHS
Not Compliant
Datasheet
TE Connectivity 536016-5 Datasheet
Download the complete datasheet for TE Connectivity 536016-5 to view detailed technical specifications.
