75 Ohm BNC bulkhead jack connector, straight orientation, female gender, designed for panel mounting. Features a zinc body with nickel plating and gold-plated copper center contacts. Operates up to 2GHz with a maximum voltage rating of 500V and an impedance of 75 Ohms. Offers 500 mating cycles and a temperature range of -55°C to 85°C. Termination is via crimp.
Frequency2GHz
Voltage Rating500V
MountingPanel
PolarityStandard, Normal
Quick Jump:
Technical Specifications
TE Connectivity 5413590-8 technical specifications.
General
Body Material
Zinc
Body Plating
Nickel
Center Contact Plating
Gold
Contact Material
Copper
Contact Plating
Gold
Depth
20.32mm
Dielectric Material
Polyethylene
ELV
Compliant
Frequency
2GHz
Gender
Female
Housing Color
Silver
Impedance
75R
Insertion Loss
0.15dB
Insulation Material
Polyethylene
Lead Free
Not Applicable
Length
34.93mm
Mating Cycles
500
Max Frequency
2GHz
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
Panel
Number of Ports
1
Number of Positions
1
Operating Frequency
0 to 2 Hz to GHz
Orientation
Straight
Package Quantity
1
Packaging
Bag
PCB Mount Retention
Without
Polarity
Standard, Normal
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Termination
Crimp
Voltage Rating
500V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5413590-8 Datasheet
Download the complete datasheet for TE Connectivity 5413590-8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

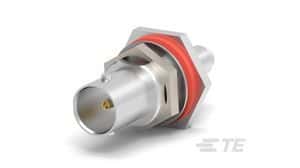

Product Images
