Right-angle BNC connector, female, with a 50-ohm impedance and a maximum operating frequency of 4GHz. Features a zinc body with nickel plating, bronze contacts with gold plating, and a polymethylpentene dielectric. Designed for panel mounting with solder termination, offering 500 mating cycles and a voltage rating of 500V. Operating temperature range is -55°C to 85°C.
Frequency4GHz
Voltage Rating500V
MountingPanel
PolarityStandard, Normal
Quick Jump:
Technical Specifications
TE Connectivity 5413879-1 technical specifications.
General
Body Material
Zinc
Body Plating
Nickel
Center Contact Plating
Gold
Contact Material
Bronze
Contact Plating
Gold
Depth
34.9mm
Dielectric Material
Polymethylpentene
ELV
Compliant
Gender
Female
Height
12.7mm
Housing Color
Silver
Impedance
50R
Insulation Material
Polymethylpentene
Lead Free
Lead Free
Length
14.7mm
Mating Cycles
500
Max Frequency
4GHz
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
Panel
Number of Ports
1
Number of Positions
1
Operating Frequency
0 to 4 GHz
Orientation
Right Angle
Package Quantity
35
Packaging
Rail/Tube
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
Polarity
Standard, Normal
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Termination
Solder
Voltage Rating
500V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5413879-1 Datasheet
Download the complete datasheet for TE Connectivity 5413879-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

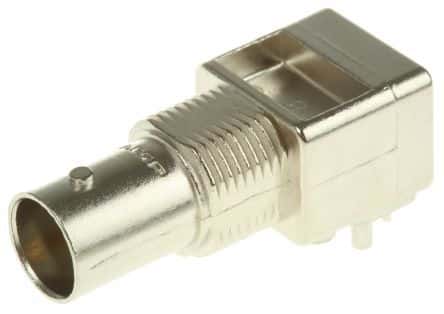

Product Images
