Right-angle PCB mount RF coaxial connector, female, 50 Ohm impedance, operating up to 4 GHz. Features a zinc body with nickel plating and gold-plated bronze center contacts. Designed for through-hole termination with a voltage rating of 500V and 500 mating cycles. Operating temperature range from -55°C to 85°C.
Frequency4GHz
Voltage Rating500V
MountingPCB, Through Hole, Board
PolarityStandard, Normal
Quick Jump:
Technical Specifications
TE Connectivity 5414373-1 technical specifications.
General
Body Material
Zinc
Body Plating
Nickel
Center Contact Plating
Gold
Contact Material
Bronze
Contact Plating
Gold
Dielectric Material
Polymethylpentene
Frequency
4GHz
Gender
Female
Housing Color
Silver
Impedance
50R
Insulation Material
Polymethylpentene
Length
25.4mm
Mating Cycles
500
Max Frequency
4GHz
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
PCB, Through Hole, Board
Number of Ports
1
Number of Positions
1
Operating Frequency
0 to 4 GHz
Orientation
Right Angle
Package Quantity
50
Packaging
Tray
PCB Mount Retention
Without
PCB Mounting Orientation
Right Angle
Polarity
Standard, Normal
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Termination
Through Hole
Voltage Rating
500V
Wire/Cable Type
Coaxial
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5414373-1 Datasheet
Download the complete datasheet for TE Connectivity 5414373-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

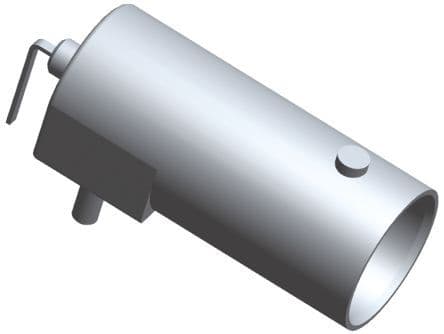

Product Images
