5499922-9

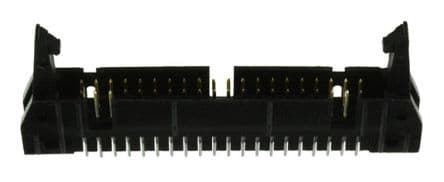

40 Pos 2 Row 2.54mm Pitch Gold Plated Male Pin Header

40-position, 2-row vertical header with a 2.54mm pitch. Features male pin contacts with gold or gold-palladium mating finish, offering a 1A current rating. Constructed with bronze and brass contact materials, plated with gold and tin. Through-hole mounting with a straight orientation, designed for wire-to-board connectivity. Housing is black, UL94 V-0 flammability rated, and operates within a -65°C to 105°C temperature range.

Voltage Rating250V

Current Rating1A

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 5499922-9 technical specifications.

General

Board Standoff	No (Without)
Connector System	Wire-to-Board
Contact Current Rating	1A
Contact Finish - Mating	Gold or Gold-Palladium
Contact Gender	Male
Contact Material	Bronze, Brass
Contact Plating	Gold, Tin
Contact Post Length	2.79mm
Contact Shape	Square
Contact Type	Male Pin
Current Rating	1A
Depth	8.53mm
Flammability Rating	UL94 V-0
Height	13.94mm
Housing Color	Black
Length	2.76inch
Mating Alignment	Yes (With)
Mating Connector Lock	Yes (With)
Mating Retention	Yes (With)
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Max Voltage Rating (AC)	250V
Mount	Through Hole
Number of Contacts	40
Number of Positions	40
Number of Rows	2
Orientation	Straight
Package Quantity	18
Packaging	Tray
PCB Mount Alignment	No (Without)
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
PCB Thickness	1.57mm
Pitch	2.54mm
Plating Thickness	2.54um
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Row Spacing	2.54mm
Series	AMP-LATCH
Shrouded	Yes (With)
Shrouded End Dimension	3.81mm
Termination	Through Hole
Voltage Rating	250V
