Right angle, 50-position modular connector with a 2.16mm pitch, designed for PCB mounting via through-hole termination. Features copper alloy contacts with gold and tin plating, a 0.187mm contact post length, and a 2-row configuration. The black thermoplastic housing offers a 105°C maximum operating temperature and is UL94 V-0 flammability rated. This unshielded connector includes mating connector lock and PCB mount retention, with solder termination.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 5552725-2 technical specifications.
General
Color
Black
Contact Material
Copper Alloy
Contact Plating
Gold, Tin
Contact Post Length
0.187mm
Depth
25.66mm
ELV
Compliant
Flammability Rating
UL94 V-0
Housing Color
Black
Lead Free
Lead Free
Length
83.32mm
Mating Connector Lock
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Contacts
50
Number of Ports
1
Number of Positions
50
Number of Rows
2
Orientation
Right Angle
Package Quantity
40
Packaging
Tray
Panel Thickness
1.57mm
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
Pitch
2.16mm
Plating
Thermoplastic
Preloaded
Yes
Radiation Hardening
No
RoHS Compliant
Yes
Series
CHAMP .085
Shielding
Unshielded
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5552725-2 Datasheet
Download the complete datasheet for TE Connectivity 5552725-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

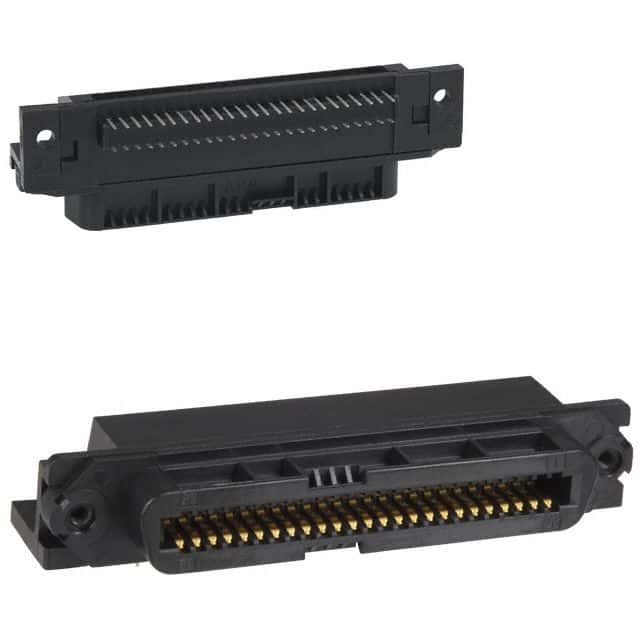

Product Images
