24-position, right-angle SCSI connector for signal applications. Features gold-plated bronze contacts and a shielded metal housing. Designed for panel or cable mounting with IDC termination for ribbon wire/cable. Rated for 1A current and operates between -40°C and 105°C. Includes mating connector lock and is RoHS compliant.
Current Rating1A
MountingPanel, Cable
Quick Jump:
Technical Specifications
TE Connectivity 5554434-1 technical specifications.
General
Circuit Application
Signal
Color
Black
Connector System
Cable-to-Panel
Contact Material
Bronze
Contact Plating
Gold
Current Rating
1A
Depth
23.62mm
ELV
Compliant
Features
Shielded
Gender
Female
Housing Color
Black
Lead Free
Lead Free
Length
56mm
Material
Metal
Mating Connector Lock
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Panel, Cable
Number of Contacts
24
Number of Ports
1
Number of Positions
24
Number of Rows
2
Orientation
Right Angle
Package Quantity
100
Packaging
Tray
Pitch
2.16mm
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
CHAMP .085
Shielding
Shielded
Termination
IDC
Wire/Cable Type
Ribbon
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5554434-1 Datasheet
Download the complete datasheet for TE Connectivity 5554434-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

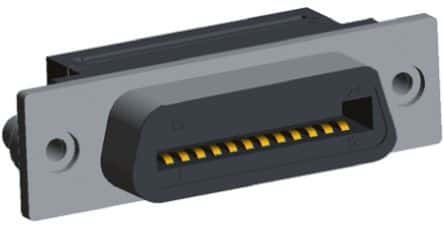

Product Images
