Right-angle, single-port modular connector with 8 positions and 8 loaded contacts. Features female, bronze contacts with gold plating and a 1.5A current rating. Designed for signal applications with a 150V AC maximum voltage rating and a 2.54mm pitch. Housing is black, UL94 V-0 flammability rated, and operates from -40°C to 70°C. Terminates via solder with a 3.8mm tail length.
Current Rating1.5A
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity 5555162-1 technical specifications.
General
Approvals
UL, CSA
Circuit Application
Signal
Contact Gender
Female
Contact Material
Bronze
Contact Plating
Gold
Current Rating
1.5A
Depth
18.16mm
Direction
Down
Element Configuration
Single
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Black
Keyed
No
Lead Free
Lead Free
Length
17.78mm
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
150V
Mode
Singlemode
Mount
Panel
Mounting Style
RIGHT ANGLE
Number of Contacts
8
Number of Ports
1
Number of Positions
8
Number of Positions Loaded
8
Number of Rows
1
Orientation
Right Angle
Package Quantity
136
PCB Mounting Orientation
Right Angle
PCB Thickness
1.57mm
Pitch
2.54mm
Plating Thickness
1.27um
Primary Type
MODULAR
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Shielding
Unshielded
Tail Length
3.8mm
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5555162-1 Datasheet
Download the complete datasheet for TE Connectivity 5555162-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

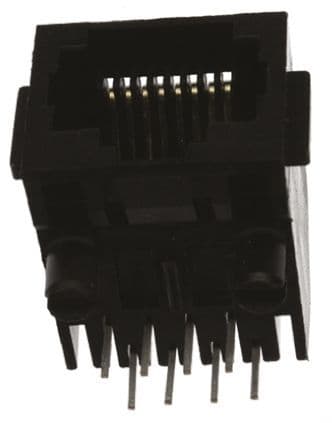

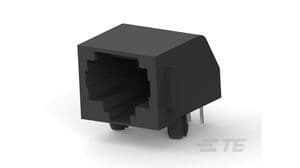

Product Images
