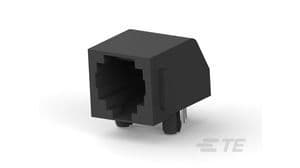

Right-angle, female I/O connector featuring 6 positions and 4 loaded contacts. This unshielded modular connector offers a 150V AC maximum voltage rating and 200mA maximum current rating. Constructed with bronze contacts plated in gold, it operates within a temperature range of -40°C to 70°C and is RoHS compliant. The black housing has a pitch of 2.64mm and a solder termination.
MountingRIGHT ANGLE
Quick Jump:
Technical Specifications
TE Connectivity 5555163-2 technical specifications.
General
Contact Gender
Female
Contact Material
Bronze
Contact Plating
Gold
Depth
18.17mm
Direction
Down
Element Configuration
Single
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Black
Keyed
No
Lead Free
Lead Free
Length
15.88mm
Max Current Rating
200mA
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
150V
Mounting Style
RIGHT ANGLE
Number of Contacts
6
Number of Ports
1
Number of Positions
6
Number of Positions Loaded
4
Number of Rows
1
Orientation
Right Angle
Package Quantity
608
Packaging
Tray
PCB Mounting Orientation
Right Angle
PCB Thickness
1.57mm
Pitch
2.64mm
Plating Thickness
1.27um
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
555
Shielding
Unshielded
Tail Length
3.8mm
Termination
Solder
Width
15.88mm
Compliance
RoHS
Compliant
