Modular RJ45 connector with 8 positions and 8 loaded contacts, featuring a straight, vertical PCB mounting orientation and a 2.54mm pitch. This shielded, female connector offers a 1.5A current rating and 150V AC voltage rating, with gold-plated bronze contacts for signal applications. Designed for through-hole termination, it operates within a -40°C to 70°C temperature range and meets UL94 V-0 flammability standards.
Voltage Rating150V
Current Rating1.5A
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity 5557969-1 technical specifications.
General
| Approvals | UL, CSA |
| Circuit Application | Signal |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 1.5A |
| Depth | 16.77mm |
| Direction | User Selectable |
| Element Configuration | Single |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Black |
| Keyed | No |
| Lead Free | Lead Free |
| Length | 18.17mm |
| Max Current Rating | 1.5A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 150V |
| Mode | Singlemode |
| Mount | Panel |
| Number of Contacts | 8 |
| Number of Ports | 1 |
| Number of Positions | 8 |
| Number of Positions Loaded | 8 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 128 |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 1.57mm |
| Pitch | 2.54mm |
| Plating Thickness | 1.27um |
| Primary Type | MODULAR |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Shielding | Shielded |
| Tail Length | 3.18mm |
| Termination | Solder |
| Voltage Rating | 150V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 5557969-1 Datasheet
Download the complete datasheet for TE Connectivity 5557969-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

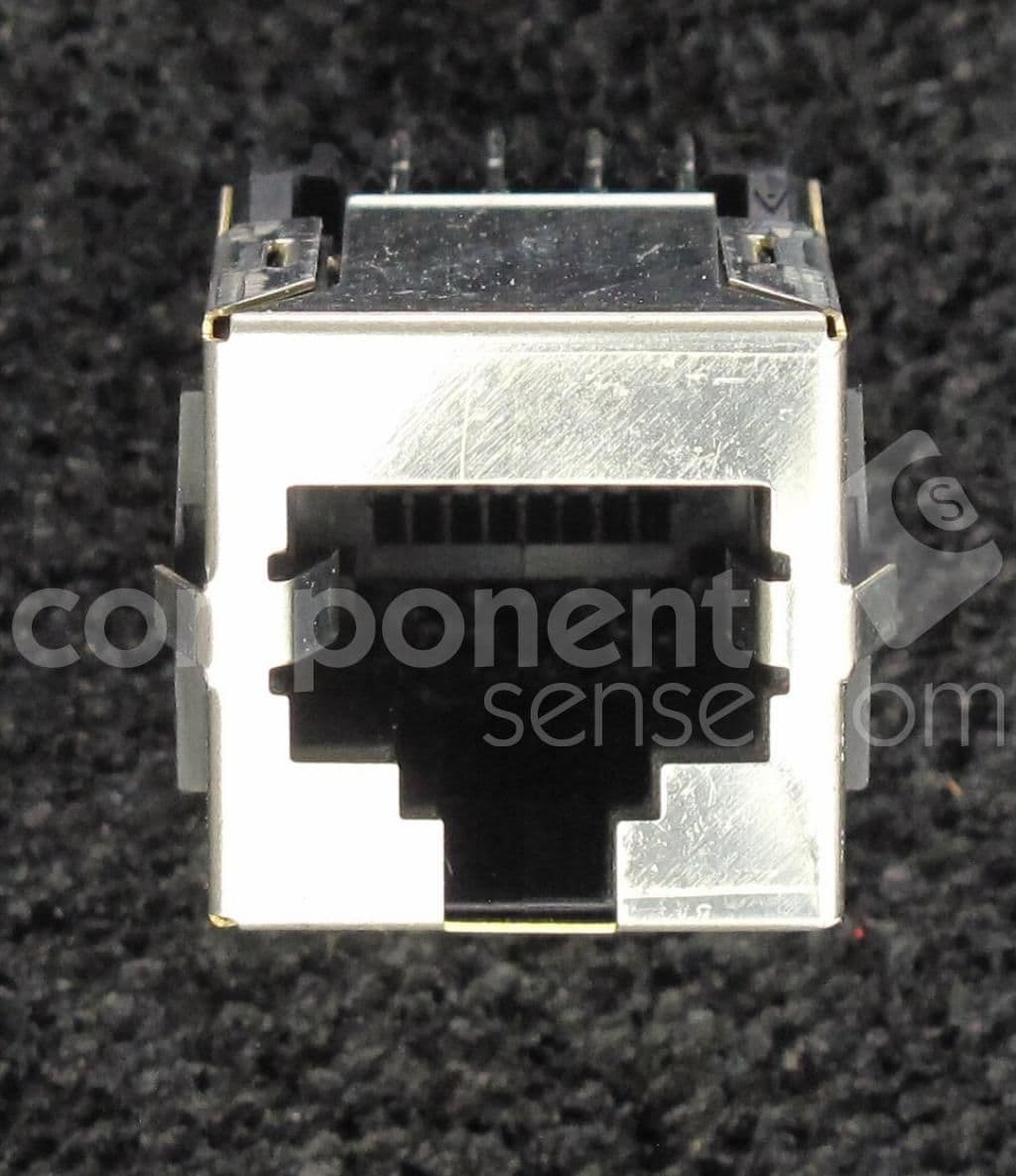

Product Images
