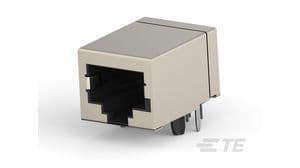

Right-angle, 10-position modular connector with a single element configuration and shielded design. Features gold-plated bronze contacts, a 2.54mm pitch, and a 3.56mm tail length for solder termination. Operates within a -40°C to 80°C temperature range and supports a maximum AC voltage rating of 150V. Housing is black, UL94 V-0 flammability rated, and the component is lead-free and RoHS compliant.
Quick Jump:
Technical Specifications
TE Connectivity 5558068-1 technical specifications.
General
Contact Material
Bronze
Contact Plating
Gold
Depth
21.34mm
Direction
Down
Element Configuration
Single
ELV
Compliant
Flammability Rating
UL94 V-0
Housing Color
Black
Keyed
Yes
Lead Free
Lead Free
Length
15.88mm
Max Operating Temperature
80°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
150V
Number of Contacts
10
Number of Ports
1
Number of Positions
10
Number of Positions Loaded
10
Number of Rows
1
Orientation
Right Angle
Package Quantity
90
Packaging
Tray
PCB Mounting Orientation
Right Angle
PCB Thickness
1.57mm
Pitch
2.54mm
Radiation Hardening
No
RoHS Compliant
Yes
Shielding
Shielded
Tail Length
3.56mm
Termination
Solder
Compliance
RoHS
Compliant
