Shielded, right-angle modular connector with 8 positions and 2 rows, featuring 64 loaded contacts for signal applications. Contacts are gold-plated bronze, rated for 150V AC and 200mA, with a 2.54mm pitch and 1.27um plating thickness. Designed for 1.57mm PCB thickness, this UL94 V-0 flammability rated component operates between -40°C and 80°C, is lead-free, RoHS compliant, and meets UL and CSA approvals.
Current Rating200mA
Quick Jump:
Technical Specifications
TE Connectivity 5569257-1 technical specifications.
General
Approvals
UL, CSA
Circuit Application
Signal
Contact Material
Bronze
Contact Plating
Gold
Current Rating
200mA
Depth
28.7mm
Direction
Up and Down
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Black
Keyed
No
Lead Free
Lead Free
Length
59.18mm
Max Operating Temperature
80°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
150V
Number of Contacts
64
Number of Ports
8
Number of Positions
8
Number of Positions Loaded
64
Number of Rows
2
Number of Ways
8
Orientation
Right Angle
Package Quantity
10
Packaging
Tray
PCB Mounting Orientation
Right Angle
PCB Thickness
1.57mm
Pitch
2.54mm
Plating Thickness
1.27um
Primary Type
MODULAR
Radiation Hardening
No
RoHS Compliant
Yes
Shielding
Shielded
Tail Length
3.56mm
Termination
Solder
Width
59.18mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5569257-1 Datasheet
Download the complete datasheet for TE Connectivity 5569257-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

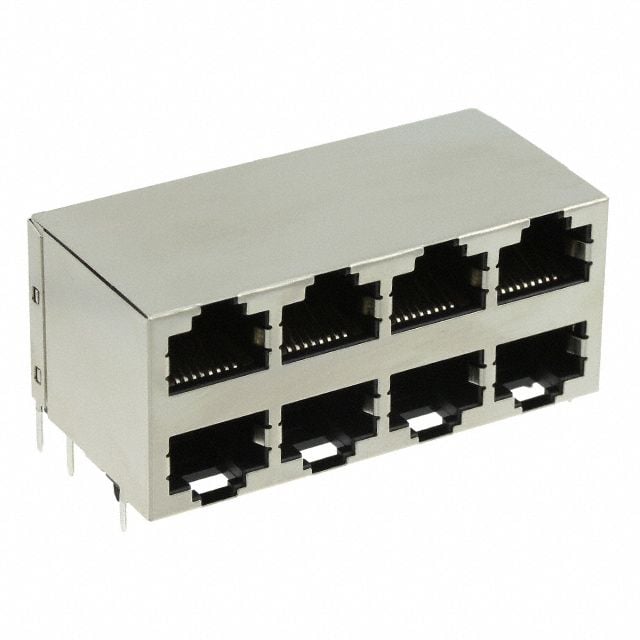

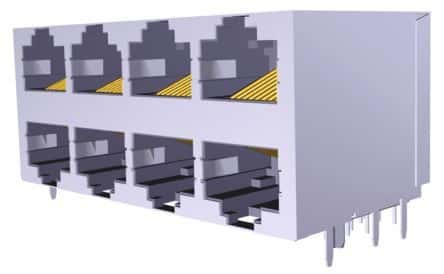

Product Images
