Voltage600V
Voltage Rating600V
Current Rating55A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 55A0111-22-2 technical specifications.
General
Color
Red
Conductor Material
Copper, Tin
Current Rating
55A
Insulation Diameter
0.043inch
Insulation Material
ETFE
Insulation Thickness
0.13mm
Length
100m
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Voltage Rating (AC)
600V
Mount
Cable
Number of Conductors
1
Number of Strands
19
Package Quantity
5000
Packaging
Spool
Radiation Hardening
No
RoHS Compliant
Yes
Series
MIL-W-22759 and MIL-C-27500, 55A0111, Raychem
Voltage
600V
Voltage Rating
600V
Wire/Cable Diameter
1.09mm
Wire/Cable Gauge
22AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 55A0111-22-2 Datasheet
Download the complete datasheet for TE Connectivity 55A0111-22-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

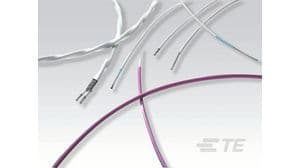

Product Images
