TE CONNECTIVITY

5650473-5

Datasheet

96 Pos Backplane Conn, 2.54mm Pitch, RA Solder, 1.5A, 250V

TE Connectivity

5650473-5

Name: 5650473-5 TE Connectivity
Brand: TE Connectivity
SKU: 5650473-5

96 Pos Backplane Conn, 2.54mm Pitch, RA Solder, 1.5A, 250V

96-position, 3-row backplane connector with a 2.54mm pitch, designed for signal applications. Features right-angle, solder termination with a 2.65mm contact post length and 0.118 inch tail length. Contact material is copper alloy with gold and tin plating, rated for 1.5A and 250V operating voltage. Housing is white polymer with a grey insulator, meeting UL94 V-0 flammability rating and RoHS compliance. Operating temperature range is -67°C to 221°C.

Voltage Rating250V

Current Rating1.5A

MountingThrough Hole

Quick Jump:

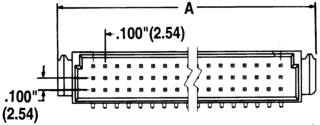

Technical Specifications

TE Connectivity 5650473-5 technical specifications.

General

Approvals	UL, CSA
Circuit Application	Signal
Color	Grey
Connector System	Board-to-Board
Contact Current Rating	1.5A
Contact Material	Copper Alloy
Contact Plating	Gold, Tin
Contact Post Length	2.65mm
Current Rating	1.5A
Depth	17.73mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Male
Height	11.1mm
Housing Color	White
Insulation Material	Polymer
Lead Free	Lead Free
Lead Length	2.65mm
Length	94mm
Material	Polyester
Mating Alignment	Yes (With)
Mating Retention	No (Without)
Max Operating Temperature	221°C
Min Operating Temperature	-67°C
Mount	Through Hole
Number of Columns	16
Number of Contacts	96
Number of Poles	96
Number of Positions	96
Number of Rows	3
Number of Signal Positions	96
Operating Supply Voltage	250V
Orientation	Right Angle
Package Quantity	30
Packaging	Box
PCB Mount Alignment	No (Without)
PCB Mount Retention	Without
PCB Mounting Orientation	Right Angle
PCB Thickness	0.062inch
Pitch	2.54mm
Reach SVHC Compliant	No
RoHS Compliant	Yes
Row Spacing	0.1inch
Sealable	No (Without)
Series	Eurocard
Shell Size	C
Tail Length	0.118inch
Terminal Pitch	2.54mm
Termination	Solder
Voltage Rating	250V
