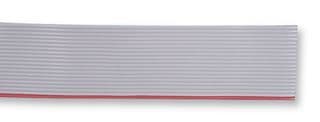

40-conductor, 28 AWG flat ribbon cable, per meter, grey color. Features 1.27mm pitch, 105 Ohm impedance, and PVC insulation. Constructed with stranded copper conductors (7 x 36) and a polyvinyl jacket. Rated for 300V, with an operating temperature range of -20°C to 105°C. RoHS compliant and lead-free.
Package100
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 57040-5 technical specifications.
General
Cable Pitch
1.27mm
Package/Case
100
Color
Grey
Conductor Material
Copper
Impedance
105R
Insulation Material
PVC
Jacket Material
Polyvinyl
Lead Free
Lead Free
Length
100foot
Max Operating Temperature
105°C
Min Operating Temperature
-20°C
Mount
Cable
Number of Conductors
40
Number of Cores
40
Package Quantity
100
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Shielding
Unshielded
Stranding
7 x 36
Voltage Rating
300V
DC Rated Voltage
300V
Wire/Cable Gauge
28AWG
Wire/Cable Type
Flat, Flat Flex
Compliance
RoHS
Compliant
