Shielded, straight-orientation backshell/cable clamp for 9-position connectors, featuring a nickel-plated zinc die cast shell and zinc alloy body. Designed for round cables with a 6.35mm insulation diameter, this metal accessory offers a 180° entry angle and a silver finish. Dimensions include a length of 30.86mm, height of 15.74mm, and depth of 48.51mm. This component is RoHS compliant and lead-free.
PackageMetal
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 5745171-1 technical specifications.
General
Body Material
ZINC ALLOY
Package/Case
Metal
Color
Silver
Depth
48.51mm
ELV
Compliant
Height
15.74mm
Insulation Diameter
6.35mm
Lead Free
Lead Free
Length
30.86mm
Material
Metal
Mount
Cable
Number of Contacts
9
Number of Positions
9
Orientation
Straight
Package Quantity
1
Packaging
Bag
Plating
Copper
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
AMPLIMITE
Shell Finish
Nickel
Shell Material
ZINC DIE CAST
Shell Size
E
Shielding
Shielded
Wire/Cable Diameter
6.35mm
Wire/Cable Type
Round
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5745171-1 Datasheet
Download the complete datasheet for TE Connectivity 5745171-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

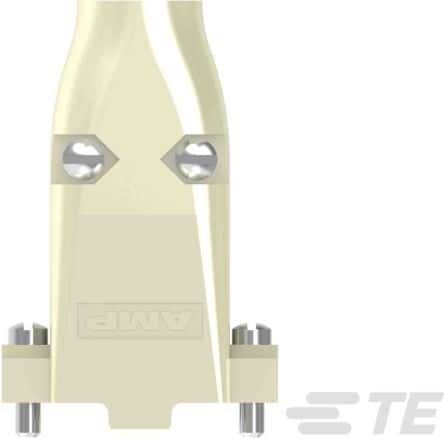

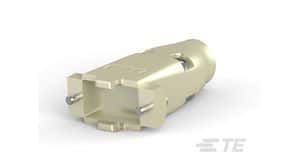

Product Images
