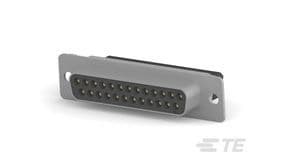

25-position, 2-row D-Subminiature connector with straight, through-hole mounting. Features female signal contacts made of gold-plated bronze with tin plating, square contact shape, and 0.125-inch contact post length. Rated for 250V AC/DC, operating temperature range of -55°C to 105°C, and UL94 V-0 flammability. Steel shell, black nylon dielectric, and tin plating ensure durability. RoHS compliant.
PackageMetal
Voltage Rating125V
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 5745187-1 technical specifications.
General
Approvals
UL, CSA
Package/Case
Metal
Color
Black
Contact Material
Bronze
Contact Plating
Gold, Tin
Contact Post Length
0.125inch
Contact Shape
Square
Contact Type
Signal
Depth
12.55mm
Dielectric Material
Nylon
Flammability Rating
UL94 V-0
Gender
Female
Length
53.04mm
Material
Metal
Mating Connector Lock
No (Without)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Supply Voltage (AC)
250V
Max Supply Voltage (DC)
250V
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
250.25kV
Mount
Through Hole
Number of Contacts
25
Number of Ports
1
Number of Positions
25
Number of Rows
2
Orientation
Straight
Package Quantity
10
Packaging
Rail/Tube
PCB Mount Retention
Without
PCB Mounting Orientation
Vertical
PCB Thickness
2.36mm
Pitch
0.108inch
Plating
Tin
Preloaded
Yes
Radiation Hardening
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
AMPLIMITE HDP-20
Shell Material
Steel
Shell Size
3
Termination
Solder
Voltage Rating
125V
Compliance
RoHS
Compliant
