Right Angle D-Subminiature Connector, 9 Position, 2 Rows, Female Signal Contacts. Features a metal body with tin plating, black housing, and thermoplastic dielectric. Contacts are bronze with gold and tin plating, offering a 0.125-inch post length and round shape. Rated for 125V AC/DC, with a maximum operating temperature of 105°C and minimum of -55°C. Through-hole mounting with mating connector lock and retention, designed for 1.58mm PCB thickness.
PackageMetal
Voltage Rating125V
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 5745781-6 technical specifications.
General
Body Material
Metal
Body Plating
Tin
Package/Case
Metal
Color
Black
Contact Gender
Female
Contact Material
Bronze
Contact Plating
Gold, Tin
Contact Post Length
0.125inch
Contact Shape
Round
Contact Type
Signal
Depth
18.79mm
Dielectric Material
Thermoplastic
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Female
Height
12.54mm
Housing Color
Black
Lead Free
Lead Free
Length
30.81mm
Material
Metal
Mating Connector Lock
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Supply Voltage (AC)
125V
Max Supply Voltage (DC)
125V
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
125.125kV
Mount
Through Hole
Number of Contacts
9
Number of Ports
1
Number of Positions
9
Number of Rows
2
Orientation
Right Angle
Package Quantity
130
Packaging
Tray
PCB Mount Alignment
Yes (With)
PCB Mount Retention
Without
PCB Mounting Orientation
Right Angle
PCB Thickness
1.58mm
Pitch
0.108inch
Plating
Tin
Preloaded
Yes
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
AMPLIMITE HD-20
Shell Material
Steel
Shell Size
E
Termination
Solder
Voltage Rating
125V
Width
12.54mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5745781-6 Datasheet
Download the complete datasheet for TE Connectivity 5745781-6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

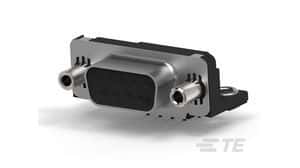

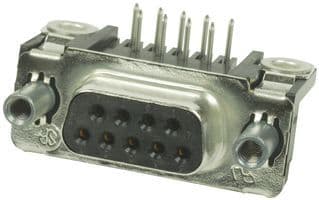

Product Images
