37-position, 2-row right-angle D-Subminiature receptacle connector with a metal shell and black thermoplastic dielectric. Features gold and tin plated bronze signal contacts with a round shape and 0.125-inch post length. Rated for 125V AC/DC, with a maximum operating temperature of 105°C and a minimum of -55°C. Through-hole mounting with solder termination, compliant with UL and CSA approvals, RoHS, and UL94 V-0 flammability rating. Includes mating connector lock and retention features.
PackageMetal
Voltage Rating125V
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 5745784-4 technical specifications.
General
Approvals
UL, CSA
Body Material
Metal
Package/Case
Metal
Color
Black
Contact Material
Bronze
Contact Plating
Gold, Tin
Contact Post Length
0.125inch
Contact Shape
Round
Contact Type
Signal
Depth
18.97mm
Dielectric Material
Thermoplastic
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Black
Lead Free
Lead Free
Length
69.31mm
Material
Metal
Mating Connector Lock
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Supply Voltage (AC)
125V
Max Supply Voltage (DC)
125V
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
125.125kV
Mount
Through Hole
Number of Contacts
37
Number of Ports
1
Number of Positions
37
Number of Rows
2
Orientation
Right Angle
Package Quantity
52
Packaging
Tray
PCB Mount Alignment
Yes (With)
PCB Mount Retention
Without
PCB Mounting Orientation
Right Angle
PCB Thickness
1.58mm
Pitch
0.108inch
Plating
Tin
Preloaded
Yes
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
AMPLIMITE HD-20
Shell Material
Steel
Shell Size
4
Termination
Solder
Voltage Rating
125V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5745784-4 Datasheet
Download the complete datasheet for TE Connectivity 5745784-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

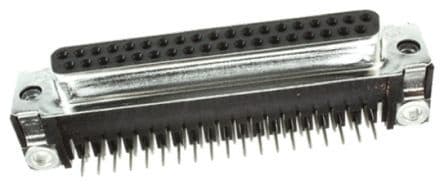

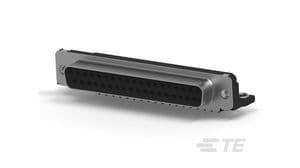

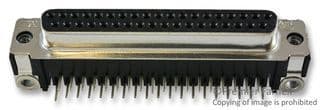

Product Images
