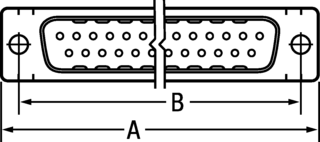

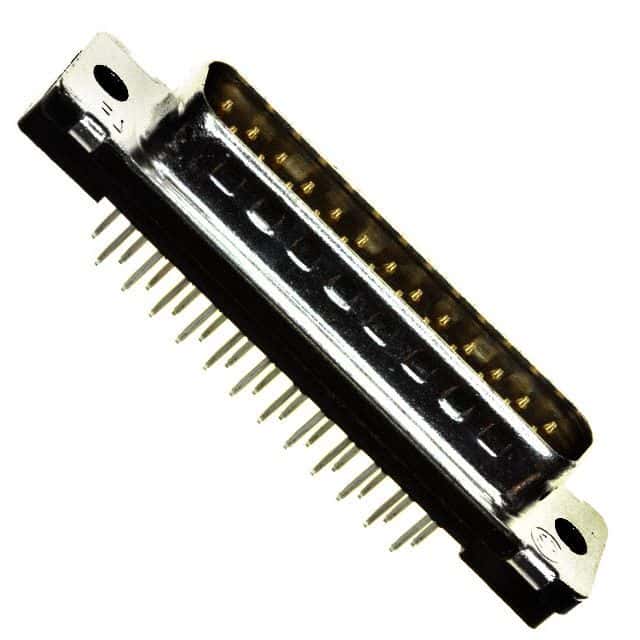

25-position, 2-row D-Subminiature plug connector with straight, through-hole mounting. Features a metal shell and body, black housing, and brass contacts with gold and tin plating. Rated for 250V AC/DC and 125V, with a maximum operating temperature of 105°C. Includes a solder termination and shielded design.
PackageMetal
Voltage Rating125V
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 5745968-4 technical specifications.
General
Body Material
Metal
Package/Case
Metal
Color
Black
Contact Material
Brass
Contact Plating
Gold, Tin
Contact Post Length
0.17inch
Contact Shape
Round
Contact Type
Signal
Depth
12.55mm
Dielectric Material
Polyester
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Black
Lead Free
Lead Free
Length
53.04mm
Mating Connector Lock
No (Without)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Supply Voltage (AC)
250V
Max Supply Voltage (DC)
250V
Max Voltage Rating (DC)
250.25kV
Mount
Through Hole
Number of Contacts
25
Number of Ports
1
Number of Positions
25
Number of Rows
2
Orientation
Straight
Package Quantity
10
Packaging
Rail/Tube
PCB Mount Retention
With
PCB Mounting Orientation
Vertical
PCB Thickness
0.125inch
Pitch
0.108inch
Plating
Tin
Preloaded
Yes
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
AMPLIMITE HD-20
Shell Material
Steel
Shell Size
3
Shielding
Shielded
Termination
Solder
Voltage Rating
125V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5745968-4 Datasheet
Download the complete datasheet for TE Connectivity 5745968-4 to view detailed technical specifications.
