25-position, 2-row D-Subminiature plug connector with male signal contacts. Features brass contacts with gold and tin plating, a metal body and shell (steel), and a black polyester dielectric. Rated for 250V AC/DC, with a maximum operating temperature of 105°C. Through-hole mounting with vertical PCB orientation and solder termination. Shielded design with mating connector lock and PCB mount retention.
PackageMetal
Voltage Rating125V
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 5745968-7 technical specifications.
General
Approvals
UL
Body Material
Metal
Package/Case
Metal
Color
Black
Contact Gender
Male
Contact Material
Brass
Contact Plating
Gold, Tin
Contact Post Length
0.125inch
Contact Shape
Round
Contact Type
Signal
Depth
12.55mm
Dielectric Material
Polyester
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Black
Lead Free
Lead Free
Length
53.04mm
Material
Metal
Mating Connector Lock
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Supply Voltage (AC)
250V
Max Supply Voltage (DC)
250V
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
250.25kV
Mount
Through Hole
Number of Contacts
25
Number of Ports
1
Number of Positions
25
Number of Rows
2
Orientation
Straight
Package Quantity
10
Packaging
Rail/Tube
PCB Mount Retention
With
PCB Mounting Orientation
Vertical
PCB Thickness
2.36mm
Pitch
0.108inch
Plating
Tin
Preloaded
Yes
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
AMPLIMITE HD-20
Shell Material
Steel
Shell Size
B
Shielding
Shielded
Termination
Solder
Voltage Rating
125V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5745968-7 Datasheet
Download the complete datasheet for TE Connectivity 5745968-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

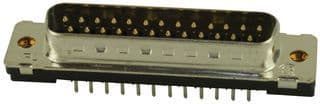

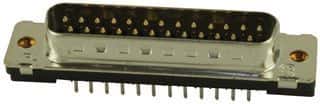

Product Images
