5747252-4

Datasheet

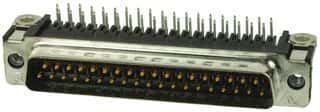

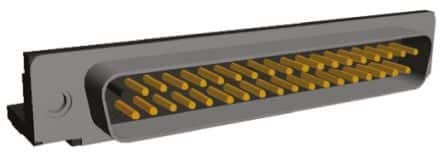

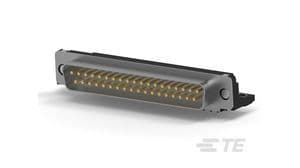

37 Pos D-Sub RA Plug, Male, Gold/Tin Plated Brass, Metal Shell

TE Connectivity

5747252-4

Name: 5747252-4 TE Connectivity
Brand: TE Connectivity
SKU: 5747252-4

37 Pos D-Sub RA Plug, Male, Gold/Tin Plated Brass, Metal Shell

37-position, 2-row standard density D-Subminiature plug connector with right-angle, through-hole mounting. Features brass male contacts with gold and tin plating, a steel metal shell, and a black housing. Rated for 250V AC/DC, with a maximum operating temperature of 105°C. Compliant with RoHS and UL94 V-0 flammability rating. Includes mating connector lock and PCB mount retention.

PackageMetal

Voltage Rating125V

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 5747252-4 technical specifications.

General

Approvals	UL, CSA
Body Material	Metal
Package/Case	Metal
Color	Black
Contact Gender	Male
Contact Material	Brass
Contact Plating	Gold, Tin
Contact Post Length	0.125inch
Contact Shape	Round
Contact Type	Signal
Depth	18.8mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Male
Housing Color	Black
Lead Free	Lead Free
Length	69.32mm
Material	Metal
Mating Connector Lock	Yes (With)
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Max Supply Voltage (AC)	250V
Max Supply Voltage (DC)	250V
Max Voltage Rating (AC)	250V
Max Voltage Rating (DC)	250.25kV
Mount	Through Hole
Number of Contacts	37
Number of Ports	1
Number of Positions	37
Number of Rows	2
Orientation	Right Angle
Package Quantity	52
Packaging	Tray
PCB Mount Retention	With
PCB Mounting Orientation	Right Angle
PCB Thickness	1.57mm
Pitch	0.109inch
Plating	Copper, Tin
Preloaded	Yes
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Sealable	No (Without)
Series	AMPLIMITE HD-20
Shell Material	Steel
Shell Size	4
Termination	Solder
Voltage Rating	125V
