25-position, 2-row D-Subminiature plug connector with right-angle, through-hole mounting. Features brass, gold/tin plated signal contacts and a steel, black metal shell. Rated for 125V, operating temperature range of -55°C to 105°C, and UL94 V-0 flammability. Includes mating connector lock and PCB mount retention.
PackageMetal
Voltage Rating125V
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 5747834-4 technical specifications.
General
Approvals
UL
Body/Shell Style
PLUG
Package/Case
Metal
Color
Black
Contact Gender
Male
Contact Material
Brass
Contact Plating
Gold, Tin
Contact Post Length
0.125inch
Contact Shape
Round
Contact Type
Signal
Depth
24.64mm
DIN Conformance
No
ELV
Compliant
Empty Shell
No
Filter Feature
No
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Black
IEC Conformance
No
Lead Free
Contains Lead
Length
53.04mm
Manufacturer Series
747834
Material
Metal
Mating Connector Lock
Yes (With)
Mating Information
MULTIPLE MATING PARTS AVAILABLE
Max Operating Temperature
105°C
MIL Conformance
No
Min Operating Temperature
-55°C
Mixed Contacts
No
Mount
Through Hole
Number of Contacts
25
Number of Ports
1
Number of Positions
25
Number of Rows
2
Option
General Purpose
Orientation
Right Angle
Package Quantity
10
Packaging
Rail/Tube
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
PCB Thickness
1.57mm
Pitch
0.108inch
Plating
Tin
Preloaded
Yes
Radiation Hardening
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
AMPLIMITE HD-20
Shell Material
Steel
Shell Size
3
Shielding
Unshielded
Termination
Solder
Voltage Rating
125V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5747834-4 Datasheet
Download the complete datasheet for TE Connectivity 5747834-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

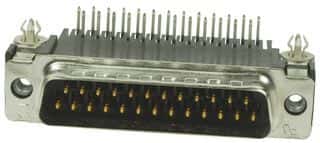

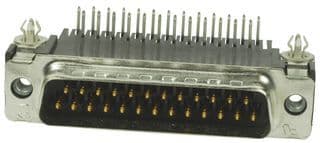

Product Images
