Right-angle, through-hole mounted D-subminiature connector with 9 positions and 2 rows. Features male brass signal contacts with gold and tin plating, a 3.17mm contact post length, and a 2.74mm pitch. Steel shell construction with a black housing, rated for 125V and operating temperatures from -55°C to 105°C. Includes mating connector lock and retention, with PCB mount alignment and retention. RoHS and UL compliant.
Voltage Rating125V
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 5747840-5 technical specifications.
General
Approvals
UL
Body Material
Steel
Circuit Application
Signal
Color
Black
Contact Gender
Male
Contact Material
Brass
Contact Plating
Gold, Tin
Contact Post Length
3.17mm
Contact Shape
Round
Contact Type
Signal
Depth
18.62mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Black
Lead Free
Lead Free
Lead Length
3.17mm
Length
30.81mm
Mating Connector Lock
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
9
Number of Ports
1
Number of Positions
9
Number of Rows
2
Orientation
Right Angle
Package Quantity
130
Packaging
Tray
PCB Mount Alignment
Yes (With)
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
PCB Thickness
1.57mm
Pitch
2.74mm
Plating
Tin
Preloaded
Yes
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Row Spacing
2.8448mm
Sealable
No (Without)
Series
AMPLIMITE HD-20
Shell Material
Steel
Shell Size
E
Termination
Solder
Voltage Rating
125V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5747840-5 Datasheet
Download the complete datasheet for TE Connectivity 5747840-5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

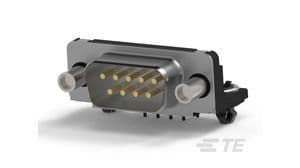

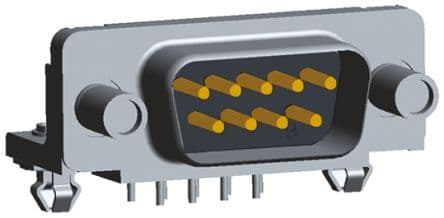

Product Images
