TE CONNECTIVITY / AMP 5747846-4 Standard D Sub Connector, AMPLIMITE HD-20 Series, DB, Receptacle, 25 Contacts, Metal Body, Solder
PackageMetal
Current Rating6A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 57478464 technical specifications.
General
| Approvals | UL, CSA |
| Body Material | Metal |
| Package/Case | Metal |
| Contact Material | Bronze |
| Contact Plating | Gold, Tin |
| Contact Post Length | 0.125inch |
| Contact Shape | Round |
| Current Rating | 6A |
| Depth | 18.79mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Black |
| Length | 53.03mm |
| Material | Metal |
| Mating Connector Lock | Yes (With) |
| Mating Retention | Yes (With) |
| Mount | Through Hole |
| Number of Contacts | 25 |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 65 |
| Packaging | Tray |
| PCB Mount Alignment | Yes (With) |
| PCB Mount Retention | With |
| PCB Mounting Orientation | Right Angle |
| PCB Thickness | 1.57mm |
| Pitch | 0.109inch |
| Plating | Tin |
| Preloaded | Yes |
| Reach SVHC Compliant | No |
| Sealable | No (Without) |
| Series | AMPLIMITE HD-20 |
| Shell Material | Steel |
| Shell Size | 3 |
| Termination | Solder |
| Width | 12.54mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 57478464 Datasheet
Download the complete datasheet for TE Connectivity 57478464 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

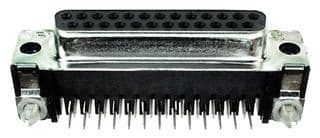

Product Images
