37-position, 2-row right-angle D-Subminiature receptacle with through-hole mounting. Features gold and tin plated bronze signal contacts with a round shape and 0.125-inch post length. Steel shell construction with black housing, rated for 250V AC/DC and 125V voltage. Thermoplastic dielectric material and UL94 V-0 flammability rating. Includes mating connector lock and PCB mount retention.
PackageMetal
Voltage Rating125V
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 5747847-6 technical specifications.
General
Approvals
UL
Body Material
Metal, Steel
Package/Case
Metal
Color
Black
Contact Material
Bronze
Contact Plating
Gold, Tin
Contact Post Length
0.125inch
Contact Shape
Round
Contact Type
Signal
Depth
18.79mm
Dielectric Material
Thermoplastic
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Black
Lead Free
Lead Free
Length
69.31mm
Mating Connector Lock
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Supply Voltage (AC)
250V
Max Supply Voltage (DC)
250V
Max Voltage Rating (DC)
250.25kV
Mount
Through Hole
Number of Contacts
37
Number of Ports
1
Number of Positions
37
Number of Rows
2
Orientation
Right Angle
Package Quantity
52
Packaging
Tray
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
PCB Thickness
1.57mm
Pitch
0.109inch
Plating
Copper, Tin
Preloaded
Yes
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
AMPLIMITE HD-20
Shell Material
Steel
Shell Size
4
Termination
Solder
Voltage Rating
125V
Width
12.54mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5747847-6 Datasheet
Download the complete datasheet for TE Connectivity 5747847-6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

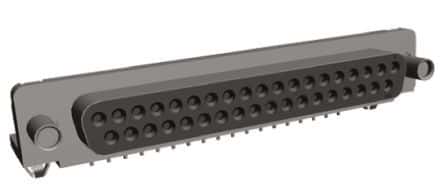

Product Images
