5748612-1

Datasheet

TE Connectivity

5748612-1

Name: 5748612-1 TE Connectivity
Brand: TE Connectivity
SKU: 5748612-1

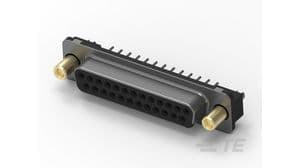

25 Pos Female D-Sub Connector, Straight, Through Hole, Gold/Tin Plated

Standard D-Subminiature Connector, 25 Position, 2 Rows, Female, Straight Orientation, Through Hole Mount. Features gold and tin plated bronze contacts, a black metal body and housing, and a steel shell. Rated for 250V AC/DC, with a maximum operating temperature of 105°C and a minimum of -55°C. RoHS compliant with UL94 V-0 flammability rating.

PackageMetal

Voltage Rating125V

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 5748612-1 technical specifications.

General

Approvals	UL
Body Material	Metal
Package/Case	Metal
Color	Black
Contact Gender	Female
Contact Material	Bronze
Contact Plating	Gold, Tin
Contact Post Length	0.125inch
Contact Shape	Round
Contact Type	Signal
Depth	12.54mm
Dielectric Material	Polyester
Flammability Rating	UL94 V-0
Gender	Female
Housing Color	Black
Length	53.03mm
Mating Connector Lock	No (Without)
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Max Supply Voltage (AC)	250V
Max Supply Voltage (DC)	250V
Max Voltage Rating (AC)	250V
Max Voltage Rating (DC)	250.25kV
Mount	Through Hole
Number of Contacts	25
Number of Ports	1
Number of Positions	25
Number of Rows	2
Orientation	Straight
Package Quantity	10
Packaging	Rail/Tube
PCB Mount Retention	With
PCB Mounting Orientation	Vertical
PCB Thickness	1.57mm
Pitch	0.108inch
Plating	Tin
Preloaded	Yes
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Sealable	No (Without)
Series	AMPLIMITE HD-20
Shell Material	Steel
Shell Size	B
Termination	Solder
Voltage Rating	125V
Width	12.16mm
