100-position, 4-row vertical receptacle assembly with a 0.05-inch pitch, designed for telecom and datacom applications. Features shielded steel body with copper plating, bronze signal contacts plated with gold and tin, and a thermoplastic dielectric. Rated for 1A current and 30V AC, with a temperature range of -55°C to 105°C. Through-hole mounting with solder termination and mating retention.
PackageTQFP
Voltage Rating30V
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 5749070-9 technical specifications.
General
Body Material
Steel
Body Plating
Copper
Package/Case
TQFP
Color
Black
Contact Material
Bronze
Contact Plating
Gold, Tin
Contact Post Length
0.125inch
Contact Type
Signal
Current Rating
1A
Depth
10.31mm
Dielectric Material
Thermoplastic
ELV
Compliant
Features
Shielded
Flammability Rating
UL94 V-0
Gender
Female
Height
8.71mm
Housing Color
Black
Lead Free
Lead Free
Length
84.2mm
Mating Alignment
No (Without)
Mating Retention
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Supply Voltage (AC)
30V
Max Voltage Rating (AC)
30V
Mount
Through Hole
Number of Contacts
100
Number of Ports
1
Number of Positions
100
Number of Rows
4
Orientation
Straight
Package Quantity
6
Packaging
Rail/Tube
PCB Mount Alignment
No (Without)
PCB Mount Retention
With
PCB Mounting Orientation
Vertical
Pitch
0.05inch
Plating
Copper
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
AMPLIMITE .050 III
Shell Material
Steel
Shell Size
A
Shielding
Shielded
Termination
Solder
Voltage Rating
30V
Width
8.71mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5749070-9 Datasheet
Download the complete datasheet for TE Connectivity 5749070-9 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

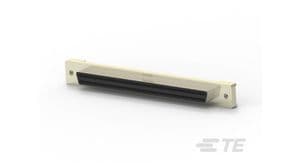

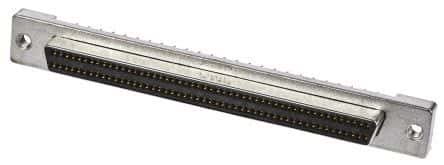

Product Images
